2012 Ford Focus Fuel Pump: Complete Replacement Guide, Problems & Costs
The 2012 Ford Focus fuel pump is an electric unit located inside the fuel tank that typically fails between 70,000-100,000 miles, showing symptoms like hard starting, stalling, and power loss. Replacement costs range from $400-$900 depending on parts chosen and labor rates, with the job requiring moderate mechanical skill and specific safety precautions due to fuel system pressures.
What Are the Signs of a Failing Fuel Pump in a 2012 Ford Focus?
The 2012 Ford Focus exhibits several telltale symptoms when its fuel pump begins to fail:
- Engine sputtering or hesitation at high speeds
- Difficulty starting or extended cranking time
- Loss of power during acceleration or when climbing hills
- Sudden stalling or unexpected engine shutdown
- Whining noise coming from the rear of the vehicle
- Engine surging at constant speeds
- Check Engine light illumination (codes P0087, P0171, P0190)
- Poor fuel economy or unexpected drops in MPG
- Car won’t start despite the engine cranking normally
- Intermittent power loss that comes and goes
- Engine running rough at idle
- Inability to maintain highway speeds
These symptoms often start intermittently before becoming more consistent as the pump deteriorates further.
Where is the Fuel Pump Located in a 2012 Ford Focus?
The fuel pump in a 2012 Ford Focus is located inside the fuel tank as part of the fuel pump assembly module.
The tank is positioned beneath the vehicle, under the rear seat and floor pan area.
Access to the pump requires either removing the rear seat bottom cushion or dropping the entire fuel tank, depending on the specific repair approach.
The assembly is secured by a locking ring accessible from above after removing the seat.
This design protects the pump and uses the fuel for cooling, but makes replacement more labor-intensive than externally mounted pumps.
How Much Does it Cost to Replace a 2012 Ford Focus Fuel Pump?
| Repair Option | Parts Cost | Labor Cost | Total Cost |
|---|---|---|---|
| Ford Dealership | $350-$500 | $300-$450 | $650-$950 |
| Independent Shop | $250-$400 | $200-$350 | $450-$750 |
| Chain Auto Repair | $250-$450 | $250-$350 | $500-$800 |
| DIY Replacement | $150-$350 | $0 | $150-$350 |
OEM fuel pump assemblies typically cost more but offer better reliability and fitment.
Labor costs vary significantly by location, with urban areas generally charging higher rates.
Additional costs may include a new fuel filter ($20-$40), tank gasket ($15-$30), and fuel pressure regulator ($50-$100) if these components also need replacement.
How to Replace the Fuel Pump in a 2012 Ford Focus
- Relieve fuel system pressure by removing the fuel pump fuse, starting the engine, and letting it run until it stalls.
- Disconnect the negative battery terminal and wait at least 10 minutes before proceeding.
- Remove the rear seat bottom cushion by locating the two plastic clips at the front edge of the seat and pulling upward firmly.
- Locate the circular access cover under the seat and remove the carpet or sound insulation covering it.
- Remove the access cover by turning it counterclockwise using a fuel pump lock ring tool or carefully with a hammer and punch.
- Disconnect the electrical connector from the top of the fuel pump assembly.
- Clean the area around the fuel pump to prevent debris from entering the tank during removal.
- Remove the locking ring by turning it counterclockwise with the appropriate tool.
- Carefully lift the fuel pump assembly straight up, being cautious not to bend the float arm or damage the filter sock.
- Transfer any necessary components from the old pump to the new assembly if not included (float arm, filters, etc.).
- Install the new fuel pump assembly with a new O-ring/gasket, ensuring proper orientation.
- Reinstall the locking ring and tighten it securely by turning clockwise.
- Reconnect the electrical connector to the fuel pump assembly.
- Reinstall the access cover, insulation, and rear seat cushion.
- Reconnect the negative battery terminal and reinstall the fuel pump fuse.
- Turn the ignition to the “On” position 2-3 times (without starting) to pressurize the system, then check for leaks.
- Start the engine and verify proper operation.
Tools Required for 2012 Focus Fuel Pump Replacement
- Fuel pump lock ring tool or spanner wrench
- Socket set and ratchet (metric)
- Flathead and Phillips screwdrivers
- Torque wrench
- Fuel line disconnect tools
- Pliers and needle-nose pliers
- Safety glasses and nitrile gloves
- Fire extinguisher (ABC rated)
- Shop towels and rags
- Drain pan for fuel spillage
- Plastic bags and zip ties for parts organization
- Flashlight or work light
- Jack and jack stands (if accessing from underneath)
- New fuel pump assembly with gasket
- Fuel pressure gauge (for testing)
Precautions Before Replacing the Fuel Pump
- Work in a well-ventilated area away from ignition sources
- Relieve fuel system pressure completely before disconnecting any lines
- Disconnect the negative battery terminal to prevent electrical shorts
- Have a fire extinguisher nearby in case of fuel ignition
- Wear safety glasses and fuel-resistant gloves to protect against splashes
- Do not smoke or use open flames in the work area
- Clean the area around connections before opening to prevent contamination
- Properly dispose of old fuel and components according to local regulations
- Never force components that don’t fit easily as this may cause damage
- Label all connections before disconnecting to ensure proper reassembly
What Are the Common 2012 Ford Focus Fuel Pump Problems?
The 2012 Ford Focus fuel pump suffers from several common issues that lead to premature failure.
The most prevalent problem is wear of the internal pump motor brushes, causing inconsistent electrical contact and erratic fuel delivery.
This typically manifests as intermittent stalling or hard starting before complete failure occurs.
Another common issue is the failure of the fuel pressure regulator, which is integrated into many pump assemblies.
When this component fails, it causes improper fuel pressure that can lead to poor performance, rough idling, and potential engine damage.
The in-tank design, while providing cooling for the pump, makes it susceptible to damage from consistently running the vehicle with low fuel levels.
Heat buildup occurs when the pump isn’t sufficiently submerged in fuel, accelerating wear on internal components.
Some owners also report issues with the electrical connector or wiring harness to the pump, which can cause intermittent operation or complete failure.
Corrosion at these connection points is particularly problematic in vehicles operated in areas with road salt or high humidity.
Which Fuel Pump Should I Buy for a 2012 Ford Focus?
| Fuel Pump Type | Average Cost | Warranty | Pros | Cons |
|---|---|---|---|---|
| Ford OEM | $350-$500 | 2 years | Perfect fit, highest quality, best reliability | Most expensive option |
| Motorcraft | $300-$400 | 2 years | Ford’s parts brand, nearly OEM quality | Still relatively expensive |
| Delphi | $200-$300 | Limited lifetime | OE supplier, good quality, lifetime warranty | May have slight fitment issues |
| Bosch | $180-$250 | Limited lifetime | Reputable brand, good performance | Some reports of premature failure |
| Carter | $150-$220 | 1-2 years | Widely available, decent quality | Mixed reliability reports |
| Economy brands | $80-$150 | 90 days-1 year | Lowest initial cost | Higher failure rates, shorter lifespan |
OEM and Motorcraft pumps offer the best reliability but at premium prices.
Mid-range options like Delphi and Bosch provide good balance of quality and value.
Economy brands may require more frequent replacement, potentially costing more long-term despite lower initial investment.
Is There a Recall on the 2012 Ford Focus Fuel Pump?
There is no specific manufacturer recall for the 2012 Ford Focus fuel pump.
Ford did issue Technical Service Bulletin (TSB) 13-1-3 addressing fuel delivery issues in some Focus models, but this primarily covered diagnostic procedures rather than identifying a specific defect.
Some 2012 Focus vehicles were covered under extended warranty programs for certain powertrain components, but the fuel pump was typically not included unless part of a broader fuel system issue.
Owners experiencing repeated fuel pump failures should document all repairs and contact Ford customer service, as goodwill coverage might be available in some cases.
While no formal recall exists, class action lawsuits regarding transmission issues in this generation Focus have sometimes included fuel system components when they were damaged as a secondary effect of the primary transmission problems.
What Are the Fuel Pump Specifications for a 2012 Ford Focus?
The 2012 Ford Focus fuel pump operates at approximately 55-65 psi (pounds per square inch) of pressure.
The flow rate is designed to deliver 35-45 gallons per hour at normal operating pressure, sufficient for the engine’s requirements even under high-demand conditions.
The pump operates on 12-volt power and typically draws 4-7 amps during normal operation.
It’s controlled by the Powertrain Control Module (PCM), which modulates pump speed based on engine demand to improve efficiency.
The assembly includes an integrated fuel pressure regulator, fuel level sender, and filter sock.
The pump uses a turbine-style design rather than a positive displacement pump, which provides consistent fuel delivery but can be more sensitive to fuel quality issues.
Can You Test a 2012 Ford Focus Fuel Pump Before Replacing It?
- Listen for the pump priming when turning the key to “On” position without starting (should hear a 2-second whirring sound).
- Check fuel pressure using a gauge connected to the Schrader valve on the fuel rail (requires specific adapter).
- Measure pressure with key on but engine off – should read 55-65 psi.
- Start engine and observe pressure – should maintain steady reading without significant drops.
- Perform a voltage drop test at the pump connector (requires accessing the connector under the rear seat).
- Check for 12V power at the pump connector when the key is turned to “On” position.
- Inspect for blown fuses related to the fuel pump circuit (typically in the main fuse box).
- Perform a current draw test to see if the pump is drawing excessive amperage (indicates internal wear).
- Check for diagnostic trouble codes (DTCs) using an OBD-II scanner that might indicate fuel system issues.
- Perform a fuel volume test by disconnecting the return line and measuring output into a calibrated container (typically requires specialized tools).
How to Access the Fuel Pump Without Removing the Gas Tank
The 2012 Ford Focus features an access panel beneath the rear seat cushion specifically designed for fuel pump service.
This design eliminates the need to drop the entire fuel tank in most cases, significantly reducing labor time and complexity.
To access this panel, remove the rear seat bottom cushion by locating the two plastic clips at the front edge and pulling upward firmly.
Once removed, you’ll see either a carpeted section or a plastic cover that conceals the actual pump access panel.
Remove any sound insulation or carpet covering the circular metal access cover.
The metal cover is secured by a locking ring that can be removed using a specialized fuel pump lock ring tool or carefully with a hammer and punch at the indicated points.
This access method works best when the fuel tank is less than half full to minimize spillage.
If the tank is more than half full, consider draining some fuel first or be prepared to deal with more significant fuel spillage during the removal process.
Does the 2012 Focus Have a Separate Fuel Pump Driver Module?
The 2012 Ford Focus does not have a separate Fuel Pump Driver Module (FPDM) like some other Ford vehicles.
Instead, the fuel pump is directly controlled by the Powertrain Control Module (PCM) through a dedicated circuit.
The pump receives variable voltage signals from the PCM to adjust delivery pressure and volume based on engine demand.
This integrated approach eliminates one potential failure point but means that pump control issues could potentially be related to the PCM itself.
Some aftermarket modifications include installing an external fuel pump controller for performance applications, but this is not part of the stock configuration.
If experiencing electrical issues with the pump, diagnostics should focus on the wiring harness, connectors, and PCM rather than looking for a separate module.
What Causes Premature Fuel Pump Failure in the 2012 Ford Focus?
Running the vehicle with consistently low fuel levels is a primary cause of premature pump failure.
The fuel in the tank helps cool the pump, and operating with less than a quarter tank regularly leads to overheating and accelerated wear.
Poor fuel quality with contaminants can damage the pump’s internal components and clog the filter sock.
Using fuel from reputable stations and avoiding the last few gallons in a station’s tank (which may contain more sediment) can help prevent this issue.
Electrical issues, including voltage spikes or inconsistent power supply, can damage the pump motor.
This is sometimes caused by corroded connections, battery issues, or problems with the vehicle’s charging system.
Excessive pressure from a malfunctioning pressure regulator can cause the pump to work harder than designed.
Some owners report improved pump longevity after installing an adjustable fuel pressure regulator, particularly in modified vehicles.
How Long Should a 2012 Ford Focus Fuel Pump Last?
The average lifespan of a 2012 Ford Focus fuel pump ranges from 70,000 to 100,000 miles under normal operating conditions.
Some owners report pumps lasting well beyond 150,000 miles, while others experience failures as early as 50,000 miles.
Driving habits significantly impact longevity, with frequent short trips being particularly hard on the pump.
This is because the pump doesn’t reach optimal operating temperature and experiences more start-up cycles, which cause the most wear.
Fuel quality plays a major role in pump lifespan, with consistent use of top-tier fuels containing better detergents helping to extend service life.
Regular fuel filter replacement (every 30,000 miles) also helps protect the pump from contaminants.
Climate factors affect durability, with extreme heat accelerating wear on electrical components and extreme cold potentially causing condensation issues within the fuel system.
Vehicles in moderate climates typically see longer pump lifespans than those in extreme environments.
What Other Components Should Be Replaced When Changing the Fuel Pump?
- Fuel pump gasket/O-ring (essential to prevent leaks)
- Fuel filter sock attached to the pump assembly
- Fuel pressure regulator (if not integrated into the new pump)
- Fuel level sending unit (often part of the assembly)
- Fuel tank strainer/filter (prevents debris from entering the new pump)
- Electrical connector if showing signs of corrosion or damage
- Fuel lines or hoses that show cracking or deterioration
- Mounting grommets or insulators that reduce pump noise
- Fuel pressure damper (if equipped) to prevent pressure fluctuations
- Locking ring if damaged during removal
These components are often sold together as part of a complete fuel pump assembly kit, making replacement more convenient and comprehensive.
People Also Ask:
Can I drive my 2012 Ford Focus with a failing fuel pump?
Driving with a failing fuel pump is not recommended as it can cause stalling in potentially dangerous situations like highway driving or intersections.
Short, necessary trips to a repair facility are possible if the car still runs, but arrange for towing if experiencing complete stalling or no-start conditions.
How do I relieve fuel pressure before replacing the pump in a 2012 Focus?
Remove the fuel pump fuse (typically #27 in the main fuse box), then start the engine and let it run until it stalls.
Try restarting the engine until it won’t run anymore, indicating the pressure has been relieved.
Alternatively, use a fuel pressure gauge on the Schrader valve to manually release pressure.
Are 2012 Ford Focus fuel pumps covered under extended warranty?
Standard Ford warranty coverage for the 2012 Focus was 3 years/36,000 miles, which has expired for all vehicles of this model year.
Some extended warranties or dealer-specific certified pre-owned programs might cover the fuel pump, but this varies by individual policy.
Check your specific warranty documentation or contact your warranty provider to confirm coverage.
What is the difference between the fuel pump on a 2012 Focus SE vs. Titanium?
There is no significant difference in the fuel pump hardware between 2012 Focus SE and Titanium trims as they use the same engine options.
Both utilize identical fuel pump assemblies with the same pressure specifications and physical dimensions.
The only potential difference would be in vehicles with the SFE (Super Fuel Economy) package, which might have slightly different fuel delivery programming but uses the same physical pump.
Can I replace just the fuel pump motor instead of the entire assembly?
While technically possible, replacing only the pump motor is not recommended for the 2012 Focus.
The labor to access the pump is identical whether replacing just the motor or the entire assembly, and the cost difference is relatively small.

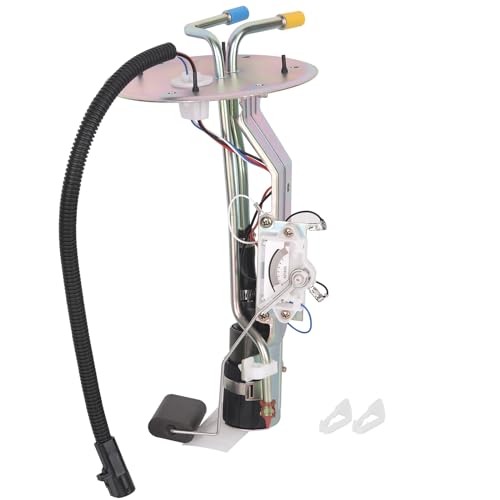

The complete assembly includes new filters, regulator, and sending unit, providing much better reliability than replacing just the motor in an otherwise aged assembly.
