The average fuel injector wiring harness replacement cost ranges from $150 to $1,200 depending on vehicle type, with most passenger cars falling between $300-$600. Labor typically accounts for 60-70% of total costs, while parts range from $50-$400 based on vehicle make and complexity.
How Much Does It Cost to Replace a Fuel Injector Wiring Harness?
The cost to replace fuel injector wiring harness averages $300-$600 for most passenger vehicles. Economy cars typically cost $150-$400, while luxury vehicles and trucks range from $500-$1,200 due to complex engine designs and premium parts.
Average Cost Breakdown: Parts vs. Labor
| Vehicle Segment | Parts Cost | Labor Cost | Total Cost | Labor % of Total |
|---|---|---|---|---|
| Economy Cars | $50-$150 | $100-$250 | $150-$400 | 65-70% |
| Mid-Range Cars | $100-$250 | $200-$350 | $300-$600 | 60-65% |
| Luxury Vehicles | $200-$400 | $300-$800 | $500-$1,200 | 60-70% |
| Trucks/SUVs | $150-$350 | $250-$600 | $400-$950 | 60-65% |
| Diesel Engines | $200-$450 | $300-$750 | $500-$1,200 | 60-65% |
The fuel injector harness replacement labor cost is higher than parts cost because accessing the harness often requires significant disassembly. Technicians must carefully remove intake manifolds, fuel rails, and other components to reach the wiring.
Many vehicles require reprogramming or adaptation procedures after replacement, adding to labor costs. This is especially true for modern vehicles with complex engine management systems.
Cost Comparison by Vehicle Type
| Vehicle Make/Type | Typical Price Range | Complexity Factors |
|---|---|---|
| Honda/Toyota | $200-$450 | Accessible design, affordable parts |
| Ford/Chevrolet | $250-$550 | Moderate access, common parts |
| Volkswagen/Audi | $400-$800 | Complex routing, specialized connectors |
| BMW/Mercedes | $600-$1,200 | Premium parts, extensive disassembly |
| Diesel Trucks | $500-$950 | Robust components, tight access |
| Hybrid Vehicles | $400-$800 | Additional safety procedures |
European vehicles typically have higher fuel injector wiring harness price due to specialized connectors and integration with complex engine management systems. Many luxury models require dealer-specific diagnostic equipment for proper installation.
Diesel engines often have higher costs due to more robust harness designs and additional connections for glow plugs or pressure sensors. The tight packaging in modern diesel engines also increases labor time.
Dealer vs. Independent Shop Pricing
| Service Provider | Parts Cost | Labor Cost | Total Average | Warranty |
|---|---|---|---|---|
| Dealership | $150-$400 | $300-$700 | $450-$1,100 | 12-24 months |
| Chain Repair Shop | $120-$350 | $250-$550 | $370-$900 | 12 months |
| Independent Shop | $100-$300 | $200-$500 | $300-$800 | 6-12 months |
| Mobile Mechanic | $100-$300 | $150-$400 | $250-$700 | Varies |
Dealerships charge 30-50% more for the same fuel injector harness replacement near me compared to independent shops. Their higher labor rates ($120-$180/hr vs. $80-$120/hr) significantly impact total cost.
Independent shops often offer better value while maintaining quality, especially those specializing in your vehicle make. Many use OEM-quality parts at lower markup rates than dealerships.
What Are the Signs of a Bad Fuel Injector Wiring Harness?
Common symptoms of bad fuel injector wiring include engine misfires, rough idle, stalling, poor acceleration, and decreased fuel economy. The check engine light typically illuminates with injector circuit codes (P0201-P0208) or fuel system-related DTCs.
Engine Performance Problems You’ll Notice
- Random or cylinder-specific misfires, especially under load
- Rough idle that may come and go with engine temperature
- Hesitation or stumbling during acceleration
- Hard starting or extended cranking time
- Significant decrease in fuel economy (10-25%)
- Engine stalling, particularly when warm
- Uneven power delivery or surging
- Unusual exhaust smell or visible smoke
- Engine running rich (black smoke) or lean (overheating)
- Complete failure of one or more cylinders
Engine misfire due to injector wiring often worsens as the vehicle warms up. This happens because heat accelerates electrical resistance in damaged wiring, causing signal degradation.
Warning Lights and Error Codes Related to Injector Wiring
The most common diagnostic trouble codes for fuel injector harness problems are cylinder-specific injector circuit codes (P0201-P0208). These directly indicate electrical issues with individual injector circuits.
You may also see related codes like P0171/P0174 (system too lean), P0172/P0175 (system too rich), or P1336 (crankshaft position sensor variation not learned). These secondary codes often appear alongside primary injector circuit codes.
Modern vehicles may display “reduced power” or “limp mode” warnings when multiple injector circuits fail. This is a protective measure to prevent engine damage from improper fuel delivery.
How Failing Wiring Affects Your Vehicle’s Drivability
Fuel injector not firing wiring issue creates noticeable drivability problems that worsen over time. Initially, you might notice occasional hesitation or rough idle that comes and goes.
As the condition deteriorates, more consistent problems develop. Acceleration becomes jerky, the engine may buck or surge, and fuel economy drops significantly. Cold starts become more difficult.
In advanced cases, the engine may run on fewer cylinders, creating severe vibration and power loss. Complete stalling can occur, especially during idle or when coming to a stop.
Can I Drive With a Damaged Fuel Injector Wiring Harness?
Driving with damaged fuel injector wiring harness failure is not recommended. It can cause catalytic converter damage, fuel system contamination, and engine overheating. In severe cases, it may leave you stranded or create unsafe driving conditions.
Immediate Risks to Your Engine and Fuel System
Damaged injector wiring can cause injectors to remain partially open, leading to fuel washing down cylinder walls. This dilutes engine oil and can cause accelerated wear on cylinder walls and bearings.
Fuel injector not working but getting power situations often result in unburned fuel entering the exhaust system. This can overheat and damage expensive catalytic converters, which typically cost $600-$2,500 to replace.
Erratic fuel delivery from wiring issues can create lean running conditions in some cylinders. This increases combustion temperatures and may lead to valve, piston, or head gasket damage over time.
Safety Concerns When Driving With Faulty Injector Wiring
The most immediate safety risk is unexpected stalling, particularly dangerous in traffic or highway situations. Loss of power while merging or passing can create accident hazards.
Vehicles with pcm to injector wiring issues may experience unpredictable behavior, including sudden power surges or losses. This unpredictability makes the vehicle difficult to control in emergency situations.
Extended cranking from hard starting increases battery drain, potentially leaving you stranded. This is particularly problematic in cold weather or remote locations.
Temporary Solutions to Get You to the Repair Shop
For emergency situations, check for loose connections that might be reseated. Look for obviously damaged wires that could be temporarily insulated with electrical tape.
Avoid high-load driving conditions like towing, mountain driving, or high speeds. Drive gently with minimal acceleration to reduce stress on the compromised system.
If the vehicle runs extremely poorly, consider having it towed rather than driving. The cost of towing ($75-$150) is often less than potential additional damage from continued operation.
Are Fuel Injector Wiring Harness Problems Covered Under Warranty?
Manufacturer warranties typically cover fuel injector harness repair for 3 years/36,000 miles under bumper-to-bumper coverage. Powertrain warranties (5-10 years) may cover it if the failure affects engine operation. Extended warranties usually include this repair.
Factory bumper-to-bumper warranties almost always cover wiring harness issues as they’re considered electrical system components. This includes parts and labor at no cost to the owner.
Powertrain warranty coverage can be less clear. Some manufacturers classify injector wiring as part of the fuel system (covered), while others consider it electrical (not covered under powertrain warranty).
Aftermarket extended warranties typically cover injector wiring under “electrical” or “fuel system” categories. Check your specific policy for exclusions related to wiring or harnesses.
DIY vs. Professional Replacement: What’s Your Best Option?
DIY fuel injector wiring harness replacement diy can save $200-$500 in labor costs but requires moderate to advanced mechanical skills. It’s feasible for accessible engines but challenging for modern vehicles with complex intake systems and tight engine bays.
Tools Needed for DIY Fuel Injector Wiring Harness Replacement
- Basic socket and wrench set with extensions ($50-$150)
- Torque wrench for proper reassembly ($30-$80)
- Trim removal tools for accessing hidden connectors ($10-$20)
- Wire cutters and strippers if repairs are needed ($10-$30)
- Multimeter for testing circuits ($20-$100)
- Vehicle-specific service manual ($20-$50)
- Fuel line disconnect tools ($10-$30)
- Intake manifold gaskets and related seals ($20-$100)
- Penetrating oil for stuck fasteners ($5-$10)
- Electrical contact cleaner ($5-$15)
- Dielectric grease for connections ($5-$10)
- Zip ties for securing harness ($3-$8)
Step-by-Step Overview of the Replacement Process
The injector wiring troubleshooting and replacement process begins with proper diagnosis to confirm the harness is the problem. Use a multimeter to check for continuity and resistance issues in the suspect circuits.
Disconnect the battery and relieve fuel system pressure before beginning work. This is critical for safety and prevents fuel spray when disconnecting injector connections.
Access typically requires removing the air intake system, and often the intake manifold on V-configuration engines. Document all connections with photos before disconnection.
Carefully remove the old harness, noting exact routing and retention points. Install the new harness following the same routing, ensuring proper connection to each injector and securing with factory-style clips.
Reassembly must follow torque specifications, particularly for intake manifold bolts. Improper torque can cause vacuum leaks or damage to components.
Common DIY Mistakes That Lead to Bigger Problems
- Improper fuel pressure relief causing fuel spray and fire hazard
- Breaking brittle plastic connectors during removal
- Incorrect routing causing wires to contact hot exhaust components
- Failing to replace related gaskets and seals
- Mixing up injector connections causing severe running issues
- Incomplete connection leading to intermittent problems
- Damaging other components during disassembly
- Improper torque on critical fasteners
- Not testing the system before complete reassembly
- Forgetting to reconnect vacuum lines or electrical connections
- Creating pinch points in the new harness during installation
Can I Repair My Fuel Injector Wiring Harness Instead of Replacing It?
Repairing a fuel injector connector repair cost is possible for localized damage and costs $50-$200 versus $300-$600 for replacement. Repairs work best for single wire damage or connector issues but aren’t recommended for widespread deterioration.
When Repair Is Possible vs. When Full Replacement Is Necessary
Repair is viable when damage is limited to one or two specific areas, such as a single chafed wire or damaged connector. Isolated cuts from rodent damage or mechanical abrasion are good candidates for repair.
Injector wiring fix vs replace decisions should favor replacement when multiple areas show deterioration, insulation is brittle throughout, or connectors are heat-damaged. These conditions indicate systemic failure that will continue to cause problems.

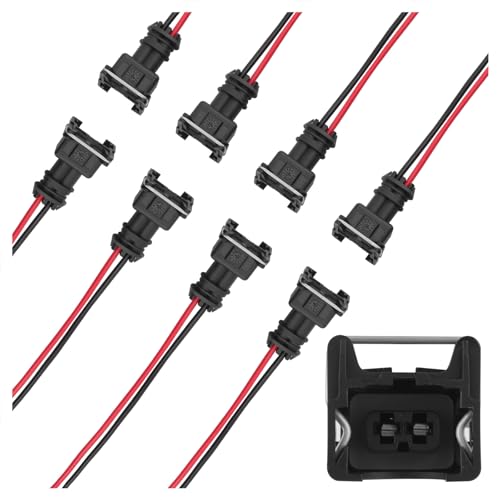

Connector repair is often possible when pins are corroded or terminals are loose. Special connector repair kits are available for many vehicle-specific applications.
Professional Wiring Repair Options and Costs
Professional fuel injector plug repair cost typically ranges from $50-$200 depending on complexity. Specialized shops can perform high-quality repairs using factory-spec materials and techniques.
Mobile automotive electricians offer convenient on-site repairs for $75-$150 in many areas. They bring specialized tools and connector assortments to perform repairs without vehicle transport.
Some repair shops offer harness rebuilding services where they replace all connectors and damaged sections while retaining the original routing. This hybrid approach costs $150-$300 and works well for rare or discontinued harnesses.
Durability of Repairs vs. Complete Replacement
Quality repairs using proper techniques can last the remaining life of the vehicle, particularly for simple issues like cut wires or damaged connectors. Heat-shrink solder connections and OEM-grade materials are essential for durability.
The cost to rewire fuel injector circuits with individual wires is usually 40-60% of complete harness replacement. This approach works well when the original harness design is problematic or unavailable.
Full replacement provides the most reliable long-term solution, especially for vehicles with a history of wiring issues. Factory harnesses include all the proper shielding, retention clips, and protective coverings that may be difficult to replicate in repairs.
Which Vehicles Have the Most Fuel Injector Wiring Harness Problems?
Vehicles with common what causes fuel injector harness to fail issues include 2000-2010 VW/Audi models, 2004-2008 Ford F-Series, 1996-2002 GM trucks, and 2003-2008 BMW 3/5-Series. Heat exposure, oil contamination, and vibration are primary causes.
Common Problem Vehicles and Their Specific Issues
Volkswagen and Audi 1.8T and 2.0T engines (2000-2010) frequently experience injector harness issues due to heat exposure. The harness routing near hot exhaust components accelerates insulation breakdown.
Ford F-Series trucks (2004-2008) with 5.4L engines have known issues with injector harness chafing against the valve covers. This eventually wears through insulation and causes shorts.
GM trucks and SUVs (1996-2002) with 4.8L, 5.3L, and 6.0L engines often develop cracks in the injector harness where it passes over the intake manifold. Heat cycling causes the insulation to become brittle.
BMW 3-Series and 5-Series (2003-2008) commonly experience oil contamination of the injector harness from valve cover gasket leaks. The oil degrades the insulation over time.
OEM vs. Aftermarket Fuel Injector Wiring Harnesses: Which Should You Choose?
OEM fuel injector wiring harness diagram exact matches ensure perfect fit but cost 40-100% more than aftermarket options. Quality aftermarket harnesses from reputable brands offer 80-90% of OEM quality at significant savings.
OEM harnesses provide exact duplicates of the original with identical connectors, wire gauges, and routing. They typically cost $150-$400 depending on vehicle make and complexity.
High-quality aftermarket options from brands like Standard Motor Products, Dorman, and ACDelco offer good reliability at 30-50% lower cost. These typically range from $80-$250.
Budget aftermarket options ($40-$100) often use thinner wiring, lower-grade connectors, and less robust insulation. These may be acceptable for older vehicles or temporary repairs but aren’t recommended for long-term reliability.
How Long Does a Fuel Injector Wiring Harness Replacement Take?
Professional replace fuel injector wiring harness cost typically requires 2-5 hours depending on engine design. Transverse engines with limited access may take 5-8 hours. DIY replacements usually take 4-10 hours for those with moderate mechanical skills.
Inline engines with good access may only require 2-3 hours for professional replacement. These include many 4-cylinder engines with straightforward intake designs.
V-configuration engines (V6, V8) typically require 3-5 hours due to the need to access both cylinder banks. Removal of the intake manifold adds significant time to these repairs.
Modern vehicles with complex intake systems, turbochargers, or tight engine bays may require 5-8 hours for complete replacement. This includes many European luxury vehicles and newer compact designs with transverse engines.
How to Prevent Future Fuel Injector Wiring Harness Problems
Prevent fuel injector harness repair guide needs by promptly fixing oil leaks, using rodent deterrents, inspecting wiring during routine maintenance, and addressing check engine lights promptly. Proper engine maintenance reduces heat-related deterioration.
Address oil and fluid leaks immediately, especially valve cover gaskets that can drip onto wiring. Oil breaks down insulation and attracts dirt that retains heat.
Use rodent deterrents in vehicles that sit for extended periods. Rodents frequently target wiring harnesses, with soy-based insulation in newer vehicles being particularly attractive.
Inspect visible wiring during routine maintenance, looking for chafing, brittleness, or discoloration. Early intervention can prevent complete failure.
Maintain proper engine operating temperature by ensuring the cooling system functions correctly. Overheating accelerates insulation breakdown in all wiring systems.
People Also Ask:
Can a bad fuel injector wiring harness cause poor fuel economy?
Yes, bad fuel injector harness symptoms include 10-25% worse fuel economy. Damaged wiring creates improper injector pulse timing, causing either too much fuel (running rich) or incomplete combustion. Both conditions significantly reduce efficiency.
How often do fuel injector wiring harnesses need replacement?
Most fuel injector wiring harnesses last 8-15 years or 100,000-150,000 miles before requiring replacement. Problem-prone vehicles may need replacement earlier, while well-maintained vehicles in moderate climates often go 200,000+ miles without issues.
What causes fuel injector wiring harnesses to fail prematurely?
What causes fuel injector harness to fail prematurely includes heat exposure, oil/fluid contamination, rodent damage, vibration fatigue, and manufacturing defects. Engines with design flaws routing wiring near hot components often fail earlier than expected.
Will a damaged fuel injector harness throw a check engine light?
Yes, damaged injector wiring almost always triggers a check engine light with engine light from injector wiring codes P0201-P0208 (injector circuit malfunctions). Modern vehicles detect resistance changes, shorts, or opens in injector circuits very quickly.
Can rodents damage fuel injector wiring harnesses?
Rodents frequently damage fuel injector wiring, especially in vehicles with soy-based wire insulation. They chew through protective coverings and individual wires, creating shorts and open circuits that cause misfires and starting problems.
Is it necessary to replace all injector wiring at once?
Replacing the entire harness is recommended even when damage appears limited. Fuel injector signal loss repair of individual wires often leads to cascading failures as adjacent wiring is likely degraded from the same conditions that caused the initial damage.
What’s the difference between injector wiring and the main engine harness?
The injector wiring harness is a specialized sub-harness that connects only to fuel injectors and sometimes closely related components. The main engine wiring harness vs injector wiring harness is larger, connecting to all engine sensors, actuators, and control modules.
Are universal fuel injector wiring harnesses reliable?
Universal harnesses are generally less reliable than vehicle-specific options. They lack proper connector types, requiring splicing, and rarely match factory routing. They’re acceptable for racing or temporary repairs but not recommended for daily drivers.
