Preparing to bleed the hydraulic clutch system in a newer Ford begins with gathering essential tools such as a hydraulic brake bleeder kit, combination wrenches, and DOT 3 or DOT 4 brake fluid. Locate the clutch master cylinder by tracing the clutch pedal through the firewall, ensure the reservoir is clean, and fill to the correct level. Attach a clear 3/16-inch hose securely to the bleeder valve, allowing fluid to flow into a catch pan. Press and release the clutch pedal steadily until air bubbles vanish, then tighten the valve and test clutch responsiveness. Further nuances and details await your discovery.
Gather Necessary Tools
To bleed the hydraulic clutch in a newer Ford, you'll need some tools.

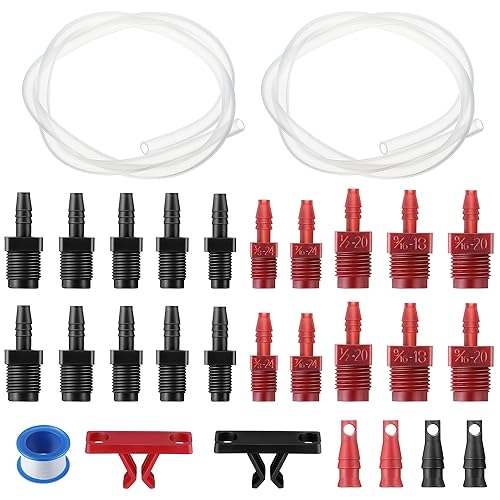

Start with a hydraulic brake bleeder kit. This includes plastic tubing and a bottle to release air safely. You'll also need a set of combination wrenches to open and close the bleeder valve without damage.
Get brake fluid that matches Ford's guidelines, like DOT 3 or DOT 4, to replace the old fluid.
Use a catch pan to collect the old fluid and keep your workspace clean. A flashlight or work light can help you see in tight spots.
Keep a clean cloth or rag handy to wipe away any spills. These tools help you bleed the clutch system properly.
Locate Clutch Master Cylinder
In many newer Ford cars, you can find the clutch master cylinder on the driver's side in the engine area. This part helps the clutch system work by turning the push from your foot into a fluid movement.
Here's how to find it:
- Lift the Hood: Make sure the car is on a flat surface. Open the hood and keep it secured so it doesn't fall.
- Spot the Brake Fluid Tank: The clutch master cylinder is usually close to the brake fluid tank. This tank is often clear plastic with a cap marked "DOT 3" or "DOT 4," showing what type of brake fluid it uses.
- Find the Firewall: Look around the firewall, the wall that separates the engine from where you sit inside the car. The clutch master cylinder is often attached here.
- Trace the Clutch Pedal Path: Follow the path from the clutch pedal inside the car through the firewall to find the cylinder. This path leads you straight to the clutch master cylinder.
This guide helps you locate the clutch master cylinder for any needed work.
Prepare the Clutch Reservoir
Make sure the clutch reservoir is ready before you bleed it. Fill it with the right hydraulic fluid to keep it working well. For most newer Ford cars, you should use DOT 3 or DOT 4 brake fluid. Check your car's manual to be sure.
Clean the reservoir cap and the area around it to stop dirt from getting in, which can cause problems.
Once you have the right fluid, fill the reservoir to the level marked on the side. Don't put in too much or too little, or the clutch might not work right. Look for leaks or wear on the reservoir. If there are issues, you might need to replace it before you start bleeding.
Make sure the reservoir cap is on right to keep air out while bleeding. Keep an eye on the fluid level throughout to make up for any loss. This simple step keeps the clutch system working well.
Attach Bleeder Hose
To bleed the hydraulic clutch system, connect a bleeder hose to the bleeder valve on the slave cylinder. This helps remove air from the system efficiently.
Follow these steps:
- Pick the Right Hose: Use a clear hose, around 3/16-inch wide. This lets you see any air bubbles, so you'll know when the air is gone.
- Attach Firmly: Connect one end of the hose tightly to the bleeder valve. Make sure it fits well to avoid leaks and keep air out.
- Place the Other End Properly: Put the other end of the hose into a clear container with some brake fluid in it. This setup stops air from getting back in when you open the valve.
- Double-Check Everything: Ensure all connections and positions are secure before you start. This setup is key for a smooth bleeding process.
Pump the Clutch Pedal
Put the bleeder hose on tightly. Start by pressing the clutch pedal down slowly. This helps the hydraulic fluid move through the system. Push the pedal all the way down and let it come back up gently. Do this a few times to get rid of air bubbles.
Go at a steady pace. Pumping too fast can stir up the fluid and add air back in. Try to do one push every few seconds, giving the fluid time to settle.
Pay attention to how the pedal feels. If it feels soft or squishy, there might still be air in the system, so keep pumping. If it feels firm, the air is likely gone. This helps make sure the clutch works well.
Open Bleeder Valve
To start opening the bleeder valve, first attach the bleeder hose properly to avoid any spills. This keeps the system clean and free from any unwanted substances.
The bleeder valve is located on the clutch slave cylinder. Use the correct wrench size, usually 10mm or 11mm, to loosen it carefully.
Step-by-step guide:
- Place a Container: Put a container under the bleeder valve to catch any fluid. This prevents spills and keeps the area clean.
- Loosen the Valve: With the wrench, turn the valve counterclockwise slightly. A small turn is enough to let the fluid out without taking the valve off.
- Press the Clutch Pedal: Keep the clutch pedal pushed down. This helps the fluid and air to escape from the system.
- Watch the Fluid: Look for a steady flow of fluid. This shows the valve is open and the system is clearing out.
Monitor Fluid and Air Release
When you open the bleeder valve, watch how the fluid and air come out. You want to see a clear, steady flow of fluid. If the fluid looks bubbly or frothy, there's still air trapped in the system.
Use a clear hose attached to the bleeder valve to check the fluid. This helps you see if the air is out and the fluid is clear.
Press and release the clutch pedal smoothly and evenly. This keeps the pressure steady and prevents air from getting in. Keep track of how much fluid you bleed out. If you lose a lot of fluid, there might be another problem.
Bleed the system until you don't see any bubbles. You might need to do this a few times.
Using a vacuum pump or pressure bleeder can make the job easier. These tools keep the fluid flowing steadily and reduce the work you have to do by hand.
But be careful not to use too much pressure, as this can damage parts. Watch closely during this process to keep the clutch working well and lasting long.
Tighten Bleeder and Test
After you make sure there's no more air in the hydraulic clutch, you need to tighten the bleeder valve. Doing this stops air from getting back in. Here's how you can do it:
- Tighten the Bleeder Valve: Grab a wrench and tighten the valve. Look for any fluid leaks. If you see any, it means the seal isn't tight enough.
- Refill the Reservoir: Look at the clutch fluid level. Fill it up to the right mark with DOT 3 or DOT 4 brake fluid, as your car's manual says.
- Test the Clutch Pedal: Push the clutch pedal a few times. It should move smoothly, without any weird resistance or spongy feel.
- Check for Leaks: Look around the valve and connections for leaks. Fix any you find to avoid future problems.
These steps help keep the hydraulic clutch working well.
People Also Ask
How Often Should I Bleed My Hydraulic Clutch System?
You should bleed your hydraulic clutch system whenever you think there's air in it or when doing clutch maintenance. It's good to check it regularly, but you don't need to bleed it on a set schedule unless your vehicle's maker says so.
What Type of Fluid Should I Use for the Clutch System?
Use DOT 3 or DOT 4 brake fluid for the clutch system in newer Ford cars. This helps it work well and last longer. Always check your car's manual to be sure you are using the right fluid.
Can Air in the Hydraulic Clutch System Cause Damage to My Vehicle?
If air gets into the hydraulic clutch system, it can cause the clutch not to work right. This might hurt the car's transmission. Fixing it quickly is important to keep the car running well and to avoid bigger problems later.
Are There Any Signs Indicating the Clutch System Needs Bleeding?
If your car's clutch feels soft or squishy, it's hard to change gears, or you hear strange noises when using it, these might mean there's air in the clutch system. Bleeding the clutch can help fix these problems and make it work better.
Is It Necessary to Have a Second Person Assist With the Bleeding Process?
You don't really need a second person to help with bleeding the clutch. Special tools like a vacuum or pressure bleeder can let you do it all by yourself. These tools make it easy for one person to get the job done.
