To properly measure piston ring end gap, first ensure the engine block is clean and inspect the cylinder for imperfections. Insert the piston ring into the cylinder bore, using a squaring tool to align it evenly about an inch from the top. Employ a feeler gauge to determine the gap size, selecting the largest blade that fits without applying excessive force. Confirm measurements against the engine's manufacturer specifications, which accommodate thermal expansion. If adjustments are necessary, use a precise file to modify the gap. Recheck your adjustments to ensure they meet specific requirements before proceeding with further steps for comprehensive understanding.
Understanding Piston Ring End Gap
Piston ring end gap is the small space between the ends of a piston ring when it is inside a cylinder. This gap must be measured accurately to keep the engine running smoothly. If the gap is too big or too small, the engine may not work well.
Different types of piston rings, like compression rings and oil control rings, need to be checked in different ways. Compression rings keep the combustion gases sealed, while oil control rings help manage oil flow.
To measure the gap, place the ring inside the cylinder and use a feeler gauge to check the space. Do this at several spots around the cylinder to consider any changes in size or wear.
The way you measure can change how accurate the gap check is. Start with digital calipers for sizing, then use feeler gauges to confirm. Knowing these steps helps keep the engine in good shape.
Importance of Proper Measurement
Checking the gap in a piston ring is key for a well-running engine. If you get it right, you stop the rings from wearing out too fast and avoid engine trouble. The gap helps seal the space where fuel burns, keeps compression up, and controls oil use.
If the gap is wrong, the engine can lose power, use more fuel, and pollute more. A small gap might make rings heat up and rub against metal, causing damage. This can scratch the cylinder walls and possibly wreck the engine.
On the other hand, a large gap can let gas escape, hurting engine performance. Engine makers usually give a range for gap sizes. Sticking to these numbers helps the gap handle heat changes and keeps the seal tight.
Checking the gap properly makes the engine work better and last longer.
Gathering Necessary Tools
To measure the piston ring end gap accurately, you need the right tools. This measurement affects how well the engine runs and how long it lasts. Choose the right tools depending on the types of rings you're dealing with.
A feeler gauge is one basic tool for measuring the gap. You use it by trying different thickness blades between the ring ends until you find the perfect fit.

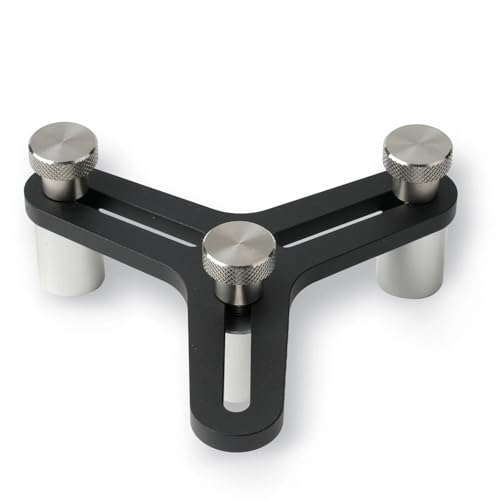

Another tool you might need is a ring squaring tool. It helps you position the piston ring evenly in the cylinder bore, which prevents errors from misalignment.
Dial bore gauges can help too. They give precise readings of the bore size, which affects the end gap measurement.
Digital calipers are handy because they are versatile and accurate. They let you quickly measure the ring's size.
Different ring types, like compression or oil control rings, may need specific methods. Knowing these details helps you measure correctly, which makes the engine run better.
Preparing the Engine Block
To get accurate piston ring end gap measurements, you need to prepare the engine block properly. Start with cleaning the engine block to eliminate any oil, carbon, or dirt. Use a good degreaser and the right cleaning tools for a spotless surface.
Next, look at the cylinder bores. Check if there are any marks, if they are out of shape, or if they taper. These issues can affect your measurements. If needed, hone the cylinder to get it back in good shape. Make sure the cylinder walls are smooth without any flaws.
Have good lighting and a clean workspace. Proper light helps you see small flaws, and a tidy area keeps dirt away.
These steps help you measure piston ring gaps accurately, which keeps the engine working well for a long time.
Correctly Positioning the Piston Ring
To position the piston ring correctly in the cylinder, follow these steps:
- Insert the Piston Ring: Place the piston ring into the cylinder bore.
- Square the Ring: Use a piston or a special tool to push the ring down evenly. This ensures it sits straight in the cylinder.
- Positioning: Set the ring about an inch below the top of the cylinder. This avoids any taper near the top.
- Check Alignment: Make sure the ring is level by using good lighting and looking closely.
Proper alignment prevents problems like blow-by or oil use by keeping the ring gap in line with what the maker says.
This keeps the engine running well and lasting longer.
Measuring the End Gap
Place the piston ring in the cylinder. Next, check the end gap. Getting this right is key for the engine to work well. Different rings, like compression and oil control rings, need exact measurements. The end gap affects how the engine compresses air and uses oil.
Start by using feeler gauges. They help measure the gap accurately. Slip the gauge into the gap and move it back and forth gently. Find the largest gauge that fits without pushing it too hard. This will help you get the correct size based on what the manufacturer says.
If you're skilled, you can use a micrometer to check the thickness of the feeler gauge. Different rings might need different gap sizes. Look at the engine's service manual for details.
For high-performance engines, the gap might be a bit wider to handle more heat. Knowing this helps keep the rings working well, avoiding problems like blow-by or too much oil burning.
Adjusting the End Gap
To adjust the piston ring end gap, you'll need precise tools. This involves understanding the ring material and the required gap size for your engine.
You'll file the ring ends to fit the gap, which varies by material and purpose. Use a fine-toothed file or a special tool for this task. Secure the ring in a vise so it doesn't move. File straight and evenly to keep the ends parallel.
Don't go beyond the gap size recommended, as too much space can harm the engine.
Here's a simple guide for gap sizes based on ring material:
- Cast Iron: 0.004 to 0.006 inches
- Steel: 0.005 to 0.007 inches
- Chrome-coated: 0.006 to 0.008 inches
- Molybdenum-coated: 0.007 to 0.009 inches
Each ring material expands differently with heat, so adjust accurately. Follow manufacturer guidelines to keep your engine running well.
Double-check your measurements to ensure they're right.
Reassembling the Engine
Putting the engine back together after fixing the piston ring gap needs careful attention. Every part should fit perfectly to ensure the engine runs well and lasts long.
First, check that the piston rings line up with their marks. This helps prevent problems like leaks or using too much oil.
Keep everything clean. Remove any dirt or debris from the parts. When putting rings on pistons, do it gently to avoid bending them. Use a ring compressor to keep rings in place before putting the piston into the cylinder.
Follow the correct torque settings for the connecting rod caps and cylinder heads. Tightening too much can cause damage, and not tightening enough can make parts loose. Look at the manufacturer's guide for the right numbers.
After assembling everything, turn the crankshaft by hand to make sure it moves smoothly. This shows that the rings and other parts are in the right spot.
People Also Ask
How Does Temperature Affect Piston Ring End Gap Measurements?
Temperature changes can make piston rings expand or shrink. This affects the end gap, which is the space between the ring's ends. If not measured correctly, it can change how the engine works and how long it lasts.
What Are Common Mistakes When Measuring Piston Ring End Gaps?
Measuring piston ring end gaps can go wrong if the ring is put in the wrong way or if you don't follow the right gap sizes. These mistakes can make the engine not work well or even break.
Can End Gap Measurements Vary Between Different Engine Types?
Yes, end gap measurements can change for different engines. This is because engines have different piston rings and sizes. Knowing the right measurement helps the engine run well and stops damage.
How Often Should Piston Ring End Gaps Be Checked in a High-Performance Engine?
Check piston ring end gaps in high-performance engines regularly. Do this during major services or after big changes to the engine. This helps keep the engine running well and lasts longer. Regular checks are important for best performance.
Are There Digital Tools Available for Measuring Piston Ring End Gaps?
Yes, there are digital tools like calipers and micrometers that can help measure piston ring end gaps. These tools give precise numbers, which is important for engines to work well. They make sure everything fits right, especially in powerful engines.
