To properly test the brake booster in your Ford, first gather essential tools like a vacuum gauge and wrenches. Understand key components such as the diaphragm and input rod. Check for vacuum leaks by inspecting the hose for cracks and using a vacuum gauge; expect 18-22 inches of mercury. Perform a basic pedal test on a flat surface, noting pedal movement with the engine on. Conduct engine-off tests to ensure vacuum consistency of 15-20 inHg. Inspect hoses for wear and secure connections. Evaluate results to identify if your brake system is functioning properly, ensuring optimal safety in your vehicle. Follow these steps for detailed insights.
Gather Necessary Tools
To test the brake booster on a Ford, start by getting the right tools. This makes checking the brakes easier and safer.
You will need:
- Vacuum Gauge: This tool checks the vacuum level in the system.
- Wrenches and Screwdrivers: These help you reach and check different parts.
- Flashlight: Use this to see clearly during the inspection.
- Safety Gear: Wear gloves and goggles to protect yourself from brake fluid or other hazardous materials.
Also, make sure to:
- Check the brake fluid levels.
- Look for any leaks in the system.
A vacuum pump can also help by simulating different conditions, though it's optional.
Understand Brake Booster Function
A brake booster helps your car stop by making it easier to press the brake pedal. It uses vacuum pressure to increase the force you apply, so the car stops more smoothly and safely.

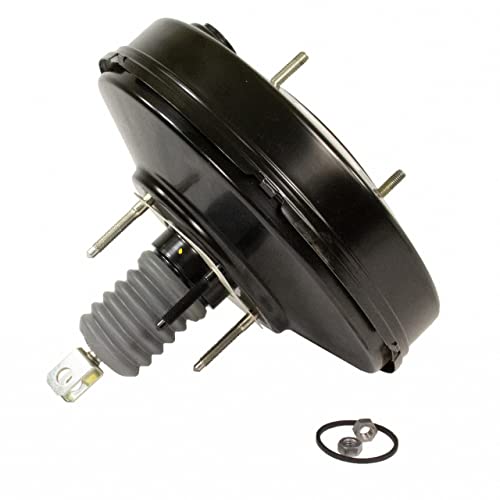

The main parts of a brake booster are the diaphragm, input rod, output rod, and vacuum chamber. Here's how each part works:
- Diaphragm: It separates vacuum from regular air, helping transfer force effectively.
- Input Rod: Connects the brake pedal to the booster, passing your foot pressure to the system.
- Output Rod: Engages the master cylinder, creating hydraulic pressure to stop the car.
- Vacuum Chamber: This part holds the vacuum that boosts the force you apply on the brake pedal.
If the brake booster isn't working right, you might notice it takes longer to stop or that the brake pedal feels hard.
Knowing what each part does can help you spot and fix problems early.
Check for Vacuum Leaks
To find problems with your brake booster, start by checking for vacuum leaks. These leaks can cause the brake pedal to feel hard and may increase the distance needed to stop the car. In some cases, it might even cause the brakes to stop working.
First, look at the vacuum hose that links the brake booster to the engine's intake manifold. Check for any cracks, splits, or loose connections. These can weaken the system.
If you see brake fluid near the booster or master cylinder, it might mean there's a different problem affecting how the brake pedal feels, although it's not related to a vacuum leak.
To test for vacuum leaks, you can use a vacuum gauge. Attach it to the hose and watch the reading while the engine is on. A normal reading should be between 18-22 inches of mercury (inHg). If it's lower, there could be a leak.
Also, listen for any hissing noises around the booster. This sound can help confirm a vacuum leak.
Fixing these leaks helps keep your brakes working well and safely in your Ford vehicle.
Perform Basic Brake Pedal Test
To check your brake booster, make sure your car is on a flat surface and the engine is off.
Press the brake pedal down a few times to release any leftover vacuum in the booster.
Once that's done, keep holding the brake pedal down and start the engine.
If the brake booster is working right, the pedal will go down a bit as the engine runs. This shows the booster is helping with the brakes.
If the pedal stays hard and doesn't move, the booster might need a closer look or even replacement.
Check how the brake pedal reacts to make sure everything is working well.
This test is quick but can help find problems with the brake booster in your Ford vehicle.
Conduct Engine-Off Test
To check if your Ford's brake booster is working right, make sure the car is on a flat surface and the engine is off. Start by pressing the brake pedal a few times. This gets rid of any leftover vacuum in the booster. If the pedal feels hard when you do this, there might be an issue with the brake booster.
Then, attach a vacuum gauge to the brake booster. The gauge should show a vacuum between 15 and 20 inches of mercury (Hg). If the number is much lower, there could be a leak or the booster might be faulty.
| Step | What to Do | What to Look For |
|---|---|---|
| 1 | Press the brake pedal repeatedly | Hard pedal might mean booster issues |
| 2 | Use a vacuum gauge | Check the vacuum level |
| 3 | Look at the gauge reading | Good level: 15-20 inches Hg |
| 4 | Understand the results | Low level suggests a booster problem |
These steps help you see if more checks or fixes are needed for the brake booster. This test is a good starting point to learn about how the brake booster is doing before trying more tests.
Execute Engine-On Test
Start the engine to test the brake booster on your Ford. This helps check if it keeps the right vacuum pressure for good brakes.
First, press the brake pedal a few times to release any leftover vacuum. Then, with the engine running and your foot still on the brake, see if the pedal moves down a bit. If it does, the brake booster is working well.
If the pedal stays firm and doesn't move, there might be a problem with the vacuum or the booster. The brake booster makes it easier to press the brake pedal by using engine vacuum. You should notice a difference in how the pedal feels when the engine is on compared to when it's off.
For a more detailed check, use a vacuum gauge to see the pressure inside the booster. It should be between 15-20 inches of mercury (in-Hg).
If the pressure is much lower or higher, you might need to look into the brake system more.
Inspect Vacuum Hose
Check the vacuum hose on your Ford to make sure it works right with the brake booster. The hose connects the brake booster to the engine's intake manifold. This connection helps create the vacuum pressure needed for braking. If the hose has cracks, leaks, or isn't connected correctly, the vacuum pressure may drop. This can make the brake pedal feel softer or harder, which might make it harder to stop the car.
To inspect the hose, look closely for any cracks, worn-out spots, or signs of brake fluid on it. If there's brake fluid, there might be a leak or other problem nearby.
Check that the hose is tightly connected at both ends to stop air from leaking. Gently bend the hose to see if it feels stiff or brittle, which means it might need to be replaced.
Keeping the vacuum hose in good shape helps the brake booster work well and keeps the car's brakes responsive.
Evaluate Test Results
Evaluating the brake booster test results helps figure out how well the brakes work. This process can show if there are any safety issues. The brake booster should help the brakes work easily without needing much force on the pedal. If it does not, there might be a vacuum leak or a problem inside the booster, which needs fixing to keep things safe.
Here's a simple table showing what the test results mean:
| Test Result | What It Means |
|---|---|
| Works Well | Brakes are safe to use |
| Weak Help | Might be a vacuum leak |
| No Help | Booster might be broken |
If the test shows weak or no help from the booster, check the brake parts closely. Weak help usually means there's a vacuum leak, which can be fixed by changing the hoses. If there's no help at all, the booster might be broken inside, and it might need repair or a new one. Fixing these problems quickly is important for keeping your Ford's brakes working properly.
People Also Ask
How Often Should I Test My Ford's Brake Booster?
You should check your Ford's brake booster every year or after driving about 12,000 miles. This is important to make sure your brakes work well and to find any problems early. Regular checks help keep you safe while driving.
Can a Faulty Brake Booster Affect Fuel Efficiency?
A bad brake booster can make your car use more fuel. When it's not working right, the engine has to work harder to make up for it, which means it burns more fuel. This can lower your car's fuel efficiency.
What Are the Symptoms of a Failing Brake Booster in a Ford?
If the brake booster in a Ford is failing, you might notice the brake pedal is harder to press, hear strange sounds when braking, or need more time to stop the car. Using special tools can help find leaks or broken parts in the system.
Is It Safe to Drive With a Malfunctioning Brake Booster?
Driving with a bad brake booster is not safe. It can make it harder to stop your car quickly, which can be dangerous. It's important to get it checked and fixed as soon as possible to keep everyone safe on the road.
How Much Does It Cost to Replace a Brake Booster in a Ford?
Replacing a brake booster in a Ford usually costs between $300 and $700. This price includes both the parts and the labor needed to install it. The exact cost depends on the specific Ford model and the local labor rates.
