To properly tune the air-fuel mixture in your modified Bentley, start with understanding the ideal ratio for gasoline engines, approximately 14.7:1. Use a wideband O2 sensor near the exhaust manifold for accurate oxygen level readings. Consider the effects of modifications like turbochargers, which necessitate more fuel to balance increased air intake. Employ relevant tools such as a digital multimeter and fuel pressure gauge for precise diagnostics. Access your engine's ECU with specialized software to adjust the fuel map incrementally, analyzing performance improvements. Dyno testing is invaluable, providing real-world condition simulation for optimal tuning. Staying informed ensures thorough mastery.
Understanding Air-Fuel Ratios
Air-fuel ratios show how much air mixes with fuel in an engine. This balance affects how well the engine runs, how much fuel it uses, and the emissions it produces.
For gasoline engines, like those in a Bentley, the ideal air-fuel ratio is about 14.7 parts of air to 1 part of fuel. Changes to the car might need adjustments to this ratio for better performance.
If the ratio is off, problems can occur. Too much air, known as a lean mix, can make the engine too hot and cause damage. Too much fuel, or a rich mix, wastes fuel and increases emissions.
To fix this, mechanics use special tools like oxygen sensors and engine control units to adjust the balance. By carefully setting the air-fuel mix, a modified Bentley can run better and stay reliable.
Identifying Modifications Impact
Changes to a Bentley's engine or exhaust system can affect how the car runs. When you add things like turbochargers or new exhausts, it changes the way the engine gets air and fuel. This can mess with the balance of air and fuel, which is important for the car to perform well.
For instance, a turbocharger pushes more air into the engine. To handle this, you need to add more fuel to avoid problems like engine knocking. On the other hand, a new exhaust can let air flow out more easily, which might make the mix of air and fuel too lean.
Different upgrades affect this balance in their own ways. If you put in a performance air intake, it lets in more air. You'll need to tweak the fuel system or risk damaging the engine. High-flow fuel injectors pump in more fuel, so you might have to adjust to stop the engine from running too rich, which could harm the car's catalytic converters.
Bentleys with these upgrades often need their electronic control units (ECU) reprogrammed. This helps keep the air and fuel mix right, ensuring the car stays powerful and reliable.
To see how these changes affect the car, you can check things like the temperature of exhaust gases and lambda readings. This way, the Bentley runs smoothly, keeping its performance and luxury intact.
Gathering Necessary Tools
To adjust the air-fuel mixture in a modified Bentley, you'll need the right tools. Without them, getting the best performance out of your car can be tough.
Here's a simple list of what you'll need:
- Digital Multimeter: This tool checks voltage, resistance, and current. It helps make sure all the electrical signals in the fuel system are working as they should.
- Fuel Pressure Gauge: Use this to check the fuel pressure. It helps you see if the pressure matches what the car maker suggests, which affects the air-fuel mix.
- Vacuum Gauge: This shows engine vacuum levels. It's useful for spotting problems like air leaks that can mess with the mixture.
- Timing Light: This checks the ignition timing. While it's not directly about the air-fuel mix, timing affects how well the engine runs and can influence the mixture.
With these tools, you'll be ready to work on tuning your Bentley's air-fuel mix.

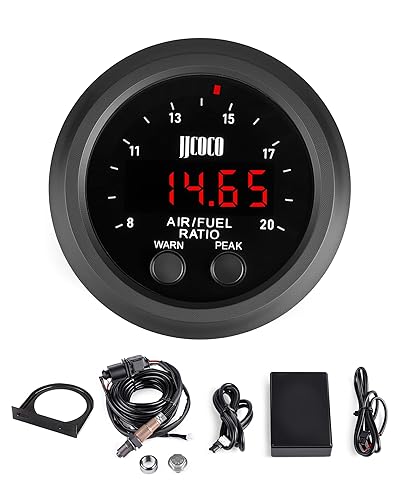

Using a Wideband O2 Sensor
A wideband O2 sensor plays a key role in getting the right air-fuel mix for a modified Bentley. This sensor measures how much oxygen is in the exhaust, helping to get the air-fuel ratio just right.
Unlike narrowband sensors that only show if the mix is rich or lean, wideband sensors give a detailed and ongoing reading over a wider range. This helps in fine-tuning.
Wideband sensors can measure air-fuel ratios from 10:1 to 20:1, unlike narrowband sensors with a limited range. This wider range is useful for performance vehicles like modified Bentleys.
A lean mix (above 14.7:1) might save fuel but could lead to overheating. A rich mix (below 14.7:1) might increase power but lower efficiency.
For the best results, place the sensor near the exhaust manifold. Brands like Innovate Motorsports and AEM Electronics offer good choices.
Innovate's sensors come with digital outputs for data logging. AEM focuses on easy calibration. The right sensor depends on what you want to achieve and the changes made to the engine.
Adjusting the Fuel Map
To get the best performance from a modified Bentley, you need to tweak the fuel map. This means adjusting how much fuel the engine gets based on speed, load, and throttle. Doing this helps the car run better and use fuel more efficiently.
Here's how to adjust the fuel map:
- Gather Data: Collect information from the engine's sensors, especially the wideband O2 sensor, to know the current air-fuel ratios in different conditions. This gives you a starting point for changes.
- Use Software: Access the engine control unit (ECU) settings with special software. This lets you change the fuel map based on the data you've gathered.
- Make Small Changes: Adjust the fuel map little by little. This way, you can see if each change improves performance without harming the engine.
- Check Engine Reaction: After each tweak, watch how the engine behaves in different situations. This helps you make sure the changes are good and don't cause issues like knocking or bad fuel economy.
Fine-Tuning With Dyno Testing
After adjusting the fuel map, the next step is fine-tuning with a dyno test. A dyno measures your Bentley's engine power in different conditions. The goal is to find the best air-fuel ratio (AFR) for maximum power and efficiency.
A wideband oxygen sensor is used to get real-time AFR data, which helps in making the engine's performance better. For example, a 12.5:1 AFR is good for turbo engines, while naturally aspirated engines might need a slightly leaner mix.
On the dyno, the engine's load is simulated to match real driving conditions. This helps in adjusting things like ignition timing and fuel delivery. You can also change boost levels or camshaft timing to see how it affects performance.
The dyno also checks exhaust gas temperatures and emissions to meet regulations. Dyno testing gives clear data to tweak the air-fuel mix for the best performance and efficiency in your Bentley.
Monitoring and Maintenance
To keep your modified Bentley running well, check and maintain the air-fuel mix regularly. This helps your car stay efficient and powerful. Here's how you can do that:
- Check Sensors Often: Look at the oxygen sensors now and then to make sure they work right. Bad sensors can mess up the air-fuel mix. If they seem worn out or give odd readings, get new ones.
- Track Data: Use tools to watch how your car performs over time. This helps you see if the air-fuel mix changes suddenly, so you can fix things early.
- Update Software: Keep your car's engine software current. Updates from manufacturers can make the fuel system work better and adjust the air-fuel mix.
- Service Fuel System Regularly: Work on the fuel system parts like injectors, pumps, and filters often. Clean injectors help keep the fuel flow steady, which is important for the right air-fuel mix.
People Also Ask
What Are Common Mistakes When Tuning a Modified Bentley's Air-Fuel Mixture?
When tuning a modified Bentley's air-fuel mixture, people often make mistakes like not considering changes made to the car, using the wrong tools, not checking live data, ignoring engine knocking sounds, and skipping tests after tuning to make sure everything works well.
Can I Tune the Air-Fuel Mixture Myself Without Professional Help?
Tuning the air-fuel mixture by yourself is possible, but it's tricky. You'll need special tools and a good understanding of how engines work. It's usually better to ask a professional for help to avoid problems and keep your engine running well.
How Does Weather Affect the Air-Fuel Mixture Tuning Process?
Weather changes affect how engines mix air and fuel. When it's cold, the air is thicker, so engines need more fuel. If it's humid or the air pressure is low, engines need less fuel. Adjusting this helps the engine work better.
What Are the Signs of an Improperly Tuned Air-Fuel Mixture in a Bentley?
If a Bentley's air-fuel mixture isn't right, the car might not run as well. You could notice the engine doesn't work smoothly, it uses more fuel, makes more smoke, idles roughly, pops loudly, and is hard to start. Keep an eye on these signs!
How Often Should I Re-Tune the Air-Fuel Mixture After Modifications?
After making big changes to your car, like adding new parts, you should check and adjust the air-fuel mixture. It's a good idea to do this every year too. This helps your Bentley run smoothly and efficiently.
