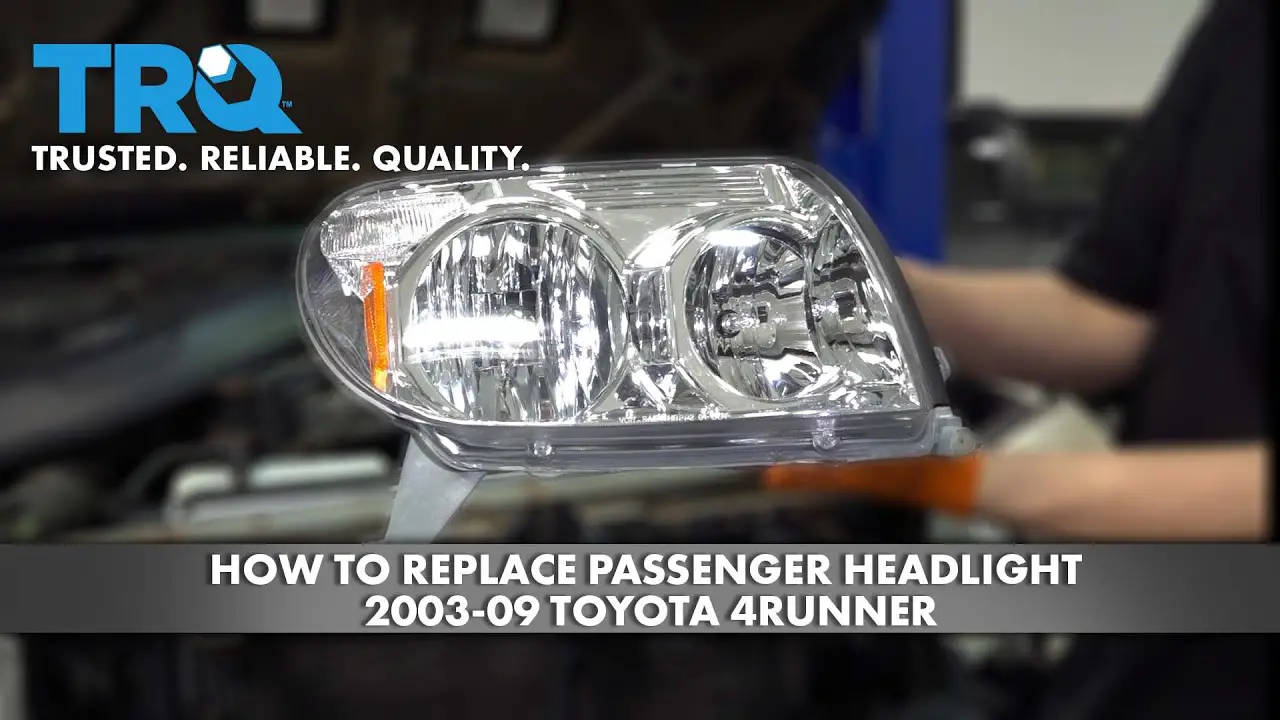

Replacing the headlight assembly on your Toyota 4Runner is a relatively simple task that you can do yourself, saving time and money. With the right tools and a little know-how, you can quickly and easily swap out your old headlight assembly for a new one. In this guide, we’ll walk you through the step-by-step process of replacing the headlight assembly on your Toyota 4Runner, so you can get back on the road with a clear and bright view ahead.
Tools and Materials You’ll Need
Before you get started, make sure you have the following tools and materials on hand:
- Socket set
- Flathead screwdriver
- New headlight assembly
- Clean cloth
Step 1: Open the Hood and Locate the Headlight Assembly
Pop the hood of your 4Runner and secure it in place. Once the hood is open, locate the back of the headlight assembly. Depending on the year of your 4Runner, there may be a dust cover or a protective cap that needs to be removed to access the headlight assembly.
Step 2: Remove the Bulb
Using a flathead screwdriver, carefully remove the wiring harness from the back of the headlight bulb. Once the harness is disconnected, you can then twist the old bulb counterclockwise and carefully remove it from the headlight assembly. Be sure to handle the bulb with care to avoid damage to the filament.
Credit: www.toyota-4runner.org
Step 3: Remove the Headlight Assembly
With the bulb removed, you can now access the mounting bolts that hold the headlight assembly in place. Use a socket set to carefully remove these bolts, being sure to keep track of each one. Once the bolts are removed, gently pull the headlight assembly away from the vehicle and set it aside.

Credit: www.amazon.com
Step 4: Install the New Headlight Assembly
Before installing the new headlight assembly, use a clean cloth to wipe down the area where the assembly will be mounted. This will help ensure a secure and clean fit for the new assembly. With the area cleaned, position the new headlight assembly in place and carefully reinsert the mounting bolts.
Step 5: Reconnect the Bulb and Wiring Harness
Once the new headlight assembly is secured in place, it’s time to reconnect the headlight bulb and wiring harness. Line up the tabs on the bulb with the slots in the assembly and twist the bulb clockwise to lock it in place. Then, reconnect the wiring harness until it clicks securely into place.
Step 6: Test the Headlight
Before closing the hood, it’s important to test the new headlight to ensure it’s functioning properly. Turn on your 4Runner’s headlights and verify that the new assembly is working as expected. If everything looks good, you’re ready to close the hood and hit the road with your new headlight assembly.
Frequently Asked Questions On How To Replace Toyota 4runner Headlight Assembly
Q: How Do I Replace The Headlight Assembly On My Toyota 4runner?
A: To replace the headlight assembly on your Toyota 4Runner, follow these steps:
1. Open the hood and locate the back of the headlight assembly. 2. Disconnect the electrical connector and remove the retaining screws. 3. Pull the old assembly out and insert the new one. 4. Secure it in place with the retaining screws and reconnect the electrical connector. 5. Test the new headlight to ensure it is working properly.
Q: What Tools Do I Need To Replace The Headlight Assembly?
A: To replace the headlight assembly on your Toyota 4Runner, you will need the following tools:
– Screwdriver
– Socket wrench
– Pliers (optional)
– Nylon pry tool (optional)
– Gloves (for safety)
Having these tools readily available will make the replacement process smoother and more efficient.
Q: Can I Replace Just The Headlight Bulb Instead Of The Entire Assembly?
A: Yes, you can replace just the headlight bulb without replacing the entire assembly. To do so, follow these steps:
1. Open the hood and locate the back of the headlight assembly. 2. Twist the bulb socket counterclockwise and pull it out. 3. Remove the old bulb from the socket and replace it with a new one. 4. Insert the socket back into the assembly, ensuring a secure fit. 5. Repeat the process for the other headlight if necessary. Remember to handle the bulbs with gloves or a clean cloth to avoid touching the glass surface.
Conclusion
Replacing the headlight assembly on your Toyota 4Runner is a straightforward task that can be completed in just a few simple steps. By following this guide and using the right tools, you can quickly and easily install a new headlight assembly, ensuring that you have a clear and bright view of the road ahead. With a little bit of time and effort, you can save money on costly labor fees and keep your 4Runner looking and performing its best.
