2009 Honda Civic LX Middle Console 12V Outlet Not Working? Here’s the Fix


If you’re experiencing issues with the 12V power outlet in your 2009 Honda Civic LX’s middle console, you’re not alone. Many Honda Civic owners have encountered this problem. Fortunately, there are several potential causes and solutions that you can explore before taking your car to a mechanic. This comprehensive guide will walk you through the troubleshooting process, help you identify the root cause, and provide step-by-step instructions for fixing the issue.

What are the common causes of a non-functional 12V outlet in a 2009 Honda Civic LX?

The most common causes of a non-working 12V outlet in a 2009 Honda Civic LX are:

  1. Blown fuse
  2. Loose or corroded wiring connections
  3. Faulty outlet
  4. Damaged circuit
  5. Overloaded circuit

A blown fuse is the most frequent culprit behind a non-functional 12V outlet. Fuses are designed to protect your car’s electrical system by breaking the circuit when there’s an overload or short circuit. Over time, fuses can wear out or blow due to excessive current draw from devices plugged into the outlet.

Loose or corroded wiring connections can also cause intermittent or complete failure of the 12V outlet. These issues often develop over time due to vibration, temperature changes, or exposure to moisture.

Sometimes, the outlet itself may be faulty. This can happen due to wear and tear, physical damage, or manufacturing defects. In rare cases, the entire circuit supplying power to the outlet may be damaged, requiring more extensive repairs.

Lastly, overloading the circuit by plugging in devices that draw too much power can cause the outlet to stop working. This is often a temporary issue that resolves once the overload is removed and the circuit is reset.

How do I troubleshoot the issue with my 12V outlet?

To troubleshoot the non-working 12V outlet in your 2009 Honda Civic LX, follow these steps:

  1. Check if other 12V outlets in the car are working
  2. Inspect the outlet for visible damage or debris
  3. Test the outlet with a different device
  4. Check the fuse
  5. Examine the wiring connections
  6. Test the outlet for power using a multimeter

Start by checking if other 12V outlets in your car are working. If they are, the issue is likely isolated to the middle console outlet. If all outlets are non-functional, the problem may be with a shared fuse or circuit.

Next, visually inspect the outlet for any signs of damage, such as bent pins or melted plastic. Also, look for any debris that might be obstructing the connection. Sometimes, small objects can fall into the outlet and prevent proper contact.

Try plugging a different device into the outlet to rule out the possibility that your original device is the problem. If the new device works, your outlet is fine, and the issue is with your original device.

If the outlet still doesn’t work, the next step is to check the fuse. We’ll cover this process in detail in a later section.

If the fuse is good, examine the wiring connections behind the outlet. Look for any loose, corroded, or damaged wires. This may require removing some interior panels to access the wiring.

Finally, if you have a multimeter, you can test the outlet for power. This will help determine if the issue is with the outlet itself or the power supply to the outlet.

Is the problem with the outlet itself or the electrical system of my car?

Determining whether the problem is with the outlet itself or the car’s electrical system requires a systematic approach:

  1. If only one outlet is affected, the problem is likely isolated to that outlet or its immediate wiring.
  2. If all 12V outlets in the car are non-functional, the issue is probably with a shared fuse or circuit in the car’s electrical system.
  3. If the fuse is good and you’re getting power to the outlet (as measured with a multimeter), but devices still won’t work when plugged in, the outlet itself is likely faulty.
  4. If there’s no power reaching the outlet despite a good fuse, the problem is somewhere in the wiring or electrical system.

To pinpoint the exact issue, you’ll need to go through the troubleshooting steps outlined in the previous section. Pay particular attention to the fuse check and wiring inspection, as these are the most common points of failure in the electrical system.

Remember that car electrical systems can be complex, and if you’re not comfortable or experienced with automotive electrical work, it’s best to consult a professional mechanic or auto electrician.

How do I check the fuse for the 12V outlet in my 2009 Honda Civic LX?

Checking the fuse for the 12V outlet in your 2009 Honda Civic LX is a straightforward process:

  1. Locate the fuse box: In the 2009 Civic LX, there are two fuse boxes. The interior fuse box is located under the dashboard on the driver’s side.
  2. Identify the correct fuse: Consult your owner’s manual or the diagram on the fuse box cover to find the fuse for the 12V outlet. In most 2009 Civic models, it’s fuse number 29, labeled as “ACC” (Accessory) or “Front Accessory Power Socket.”
  3. Remove the fuse: Use the fuse puller tool (usually located in the fuse box) or a pair of needle-nose pliers to carefully remove the fuse.
  4. Inspect the fuse: Hold the fuse up to a light source. If the metal strip inside the fuse is intact, the fuse is good. If the strip is broken or you see discoloration, the fuse is blown and needs to be replaced.
  5. Test with a multimeter (optional): For a more definitive check, you can use a multimeter set to continuity mode. Touch the probes to each end of the fuse. If you hear a beep or see a reading close to zero ohms, the fuse is good. If there’s no beep or the reading is infinity, the fuse is blown.

Remember to check both fuse boxes if you can’t find the correct fuse in the interior box. Some models may have the 12V outlet fuse in the under-hood fuse box.

What are the steps to replace the fuse if it’s blown?

If you’ve determined that the fuse for your 12V outlet is blown, here’s how to replace it:

  1. Purchase a replacement fuse: Buy a fuse with the same amperage rating as the original. For most 2009 Civic models, this is a 15A or 20A fuse. Check your owner’s manual or the fuse box diagram to confirm.
  2. Turn off the ignition: Ensure your car is off and the key is removed from the ignition before replacing the fuse.
  3. Remove the old fuse: If you haven’t already, remove the blown fuse using the fuse puller tool or needle-nose pliers.
  4. Insert the new fuse: Carefully insert the new fuse into the same slot. Make sure it’s seated properly and fully inserted.
  5. Test the outlet: Turn on your car’s ignition and test the 12V outlet to see if it’s now working.
  6. Replace the fuse box cover: If everything is working correctly, replace the fuse box cover.

If the new fuse blows immediately or soon after replacement, there may be a more serious electrical issue that requires professional diagnosis and repair.

Can a faulty 12V outlet be repaired or does it need to be replaced?

In most cases, a faulty 12V outlet in a 2009 Honda Civic LX will need to be replaced rather than repaired. Here’s why:

  1. Design: These outlets are typically designed as sealed units, making internal repairs difficult or impossible without damaging the outlet.
  2. Cost-effectiveness: The cost of a new outlet is often less than the time and effort required to attempt a repair.
  3. Reliability: Even if a repair is possible, it may not be as reliable as a new outlet, potentially leading to future issues.
  4. Safety: Improper repair of an electrical component can create safety hazards.

However, before replacing the outlet, make sure the issue isn’t with the wiring or connections. Sometimes, what appears to be a faulty outlet is actually a loose or corroded wire connection that can be easily fixed.

If you’ve determined that the outlet itself is faulty and needs replacement, the process is relatively straightforward but may require some disassembly of your car’s interior. If you’re not comfortable with this, it’s best to have a professional mechanic or auto electrician perform the replacement.

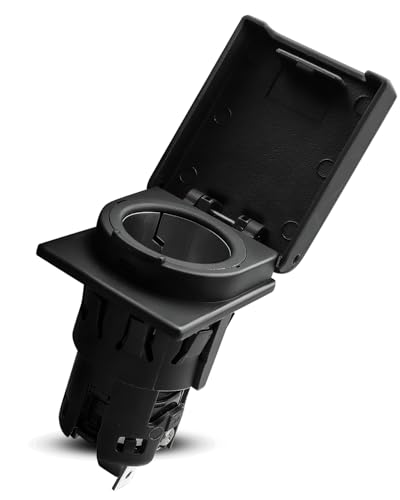

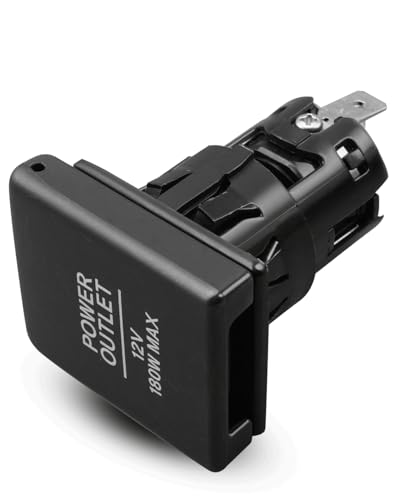

How do I replace the 12V outlet in my 2009 Honda Civic LX middle console?

Replacing the 12V outlet in your 2009 Honda Civic LX middle console involves several steps:

  1. Disconnect the battery: For safety, always disconnect the negative terminal of your car’s battery before working on electrical components.
  2. Remove the center console: This typically involves removing several screws and plastic clips. Consult your car’s service manual for exact instructions.
  3. Locate the 12V outlet: Once the console is removed, you should be able to access the back of the 12V outlet.
  4. Disconnect the wiring: Carefully disconnect the wiring harness from the old outlet. Take note of how it’s connected.
  5. Remove the old outlet: The outlet is usually held in place by plastic tabs or a retaining nut. Carefully remove it from the console.
  6. Install the new outlet: Insert the new outlet into the console, securing it the same way the old one was attached.
  7. Connect the wiring: Connect the wiring harness to the new outlet, ensuring it’s securely attached.
  8. Reassemble the console: Put the center console back together, replacing all screws and clips.
  9. Reconnect the battery: Reconnect the negative terminal of your car’s battery.
  10. Test the new outlet: Turn on your car and test the new outlet to ensure it’s working properly.

Remember, if you’re not comfortable with this process or lack the necessary tools, it’s best to have a professional perform the replacement.

Are there any safety precautions I should take when working with electrical systems in my car?

When working with your car’s electrical system, safety should be your top priority. Here are some important precautions to take:

  1. Disconnect the battery: Always disconnect the negative terminal of your car’s battery before working on any electrical components. This prevents the risk of short circuits or electric shock.
  2. Use insulated tools: When working with electrical components, use tools with insulated handles to prevent accidental shocks.
  3. Avoid metal jewelry: Remove metal jewelry like watches, rings, or bracelets that could accidentally conduct electricity.
  4. Work in a dry area: Ensure your work area is dry to reduce the risk of electrical accidents.
  5. Don’t force connections: If a connector doesn’t fit easily, double-check that you have the correct part. Forcing connections can damage components and create safety hazards.
  6. Follow the manual: Always consult your car’s service manual for specific instructions and precautions for your model.
  7. Know your limits: If you’re unsure about any step in the process, it’s best to consult a professional mechanic or auto electrician.
  8. Use proper fuses: Always replace fuses with ones of the same amperage rating. Using a higher-rated fuse can create a fire hazard.
  9. Check for bare wires: Inspect wiring for any exposed metal. Bare wires can cause short circuits and should be properly insulated.
  10. Wait before reconnecting: After working on the electrical system, wait a few minutes before reconnecting the battery to allow any residual charge in the system to dissipate.

By following these safety precautions, you can minimize the risk of injury or damage to your vehicle while working on its electrical system.

How do I test the 12V outlet after repair or replacement to ensure it’s working correctly?

After repairing or replacing your 12V outlet, it’s crucial to test it thoroughly to ensure it’s functioning correctly. Here’s a step-by-step process to test your outlet:

  1. Visual inspection: Before powering up, visually inspect the outlet and surrounding area for any loose connections, exposed wires, or signs of damage.
  2. Reconnect the battery: If you disconnected the battery, reconnect it now.
  3. Turn on the ignition: Turn your car’s ignition to the “ON” position. You don’t need to start the engine for this test.
  4. Use a simple device: Plug in a simple device like a phone charger with an LED indicator. If the LED lights up, it’s a good sign that the outlet is receiving power.
  5. Check voltage with a multimeter: For a more precise test, use a digital multimeter:
  • Set the multimeter to DC voltage (usually marked as VDC)
  • Insert the red probe into the center of the outlet and the black probe to the outer ring
  • You should read approximately 12-14 volts when the car is off, and 13-14.5 volts when the engine is running
  1. Test with multiple devices: Try plugging in different devices to ensure the outlet can handle various loads.
  2. Check for heating: After using the outlet for a few minutes, carefully touch the plug and outlet. They should be cool or only slightly warm. If they’re hot, there may be a problem with the wiring or the outlet itself.
  3. Long-term test: Use the outlet regularly over the next few days, checking for any intermittent issues.

If you encounter any problems during these tests, double-check your work and consider consulting a professional if issues persist. Remember, a properly functioning 12V outlet is not just about convenience—it’s also a matter of safety for your vehicle’s electrical system.
