Replacing the alternator on a 2008 Honda Odyssey EXL is a task that requires careful attention to detail and proper tools. This guide will walk you through the process step-by-step, ensuring you can successfully replace your alternator and get your vehicle back on the road.
Tools and Materials Needed
To replace the alternator on a 2008 Honda Odyssey EXL, you’ll need the following tools and materials:
- Socket set (including 10mm, 12mm, and 14mm sockets)
- Ratchet and extensions
- Flathead and Phillips screwdrivers
- Pliers
- Wrench set
- Serpentine belt tool
- New alternator (make sure it’s compatible with your specific model)
- New serpentine belt (if the old one is worn)
- Work gloves
- Safety glasses
- Flashlight or work light
Having these tools and materials ready before you start will make the process smoother and more efficient. It’s also a good idea to have a repair manual or online guide specific to your vehicle for reference.
Locating the Alternator
The alternator in a 2008 Honda Odyssey EXL is located on the front of the engine, on the passenger side. To access it:
- Open the hood and secure it in place.
- Remove the engine cover by unscrewing the two bolts holding it in place with a flathead screwdriver.
- Look towards the front of the engine on the passenger side. The alternator is a large, cylindrical component with a pulley on the front.
The alternator is nestled between other engine components, which can make access slightly challenging. You may need to move or loosen some nearby parts, such as the power steering reservoir or AC lines, to gain better access.
Disconnecting the Battery
Disconnecting the battery is crucial before replacing the alternator to prevent electrical shorts or shocks. Here’s how to do it:
- Locate the battery in the engine compartment. In the 2008 Honda Odyssey EXL, it’s typically on the driver’s side.
- Use a wrench to loosen the nut on the negative (-) terminal, which is usually black.
- Remove the negative cable from the terminal and secure it away from the battery.
- If possible, also disconnect the positive (+) terminal for added safety.
Always disconnect the negative terminal first and reconnect it last to prevent sparks. This step is essential for your safety and to protect the vehicle’s electrical system.
Removing the Alternator Belt
To remove the serpentine belt from the alternator pulley:
- Locate the belt tensioner pulley. In the 2008 Odyssey, it’s usually near the alternator.
- Use a 14mm socket on the tensioner pulley bolt.
- Turn the tensioner clockwise to relieve tension on the belt.
- While holding the tensioner, slip the belt off the alternator pulley.
- Slowly release the tensioner and remove the belt completely.
When handling the belt, check for signs of wear such as cracks, fraying, or glazing. If the belt shows these signs, it’s a good idea to replace it along with the alternator.
Disconnecting Electrical Connections
To disconnect the electrical connections to the alternator:
- Locate the main power cable connected to the back of the alternator. It’s usually held in place by a nut.
- Remove the nut using a socket or wrench and carefully pull off the cable.

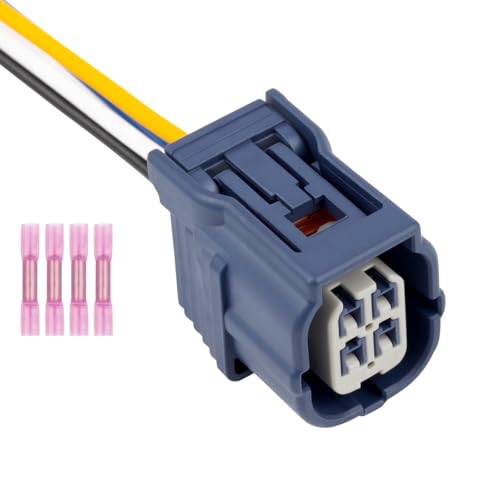

- Find the electrical connector on the back or side of the alternator.
- Press the release tab on the connector and gently pull it off.
Failing to disconnect these connections can lead to electrical damage or personal injury. Always double-check that all connections are removed before attempting to remove the alternator.
Removing the Alternator Mounting Bracket
To remove the mounting bracket and bolts holding the alternator:
- Locate the mounting bolts. There are typically two or three bolts securing the alternator.
- Use the appropriate socket (usually 12mm or 14mm) to remove these bolts.
- Keep track of the bolt locations, as they may be different lengths.
- Once all bolts are removed, carefully wiggle the alternator to free it from its mount.
Common issues during this step include stuck or stripped bolts. If a bolt is stuck, try using penetrating oil and let it sit for a few minutes before attempting removal again. For stripped bolts, you may need to use a bolt extractor tool.

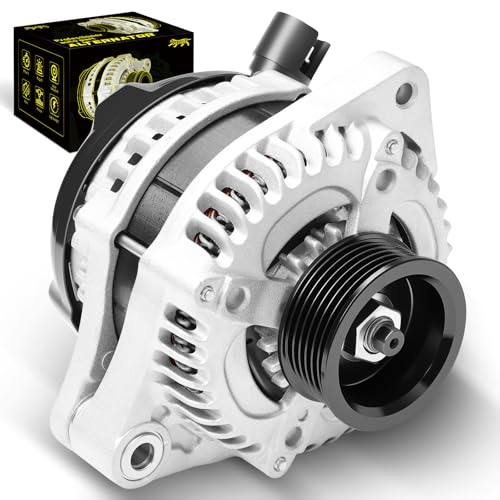

Installing the New Alternator
To properly install the new alternator:
- Compare the new alternator to the old one to ensure it’s the correct replacement.
- Carefully position the new alternator in place.
- Start threading the mounting bolts by hand to avoid cross-threading.
- Tighten the bolts with a socket wrench, but don’t fully tighten until all bolts are in place.
- Once all bolts are started, tighten them fully in a crisscross pattern.
Key things to check during installation:
- Ensure the alternator is seated properly and aligned with the belt pulleys.
- Check that no wires or hoses are pinched behind the alternator.
- Verify that all mounting points are secure and the alternator doesn’t wobble.
Reconnecting Electrical Connections
To reconnect the electrical connections to the new alternator:
- Reattach the main power cable to the alternator output stud. Tighten the nut securely.
- Plug in the electrical connector. You should hear a click when it’s fully seated.
- Double-check that both connections are secure and properly positioned.
Common mistakes to avoid:
- Don’t overtighten the power cable nut, as this can damage the alternator.
- Ensure the electrical connector is fully seated to prevent intermittent electrical issues.
- Make sure no wires are pinched or in contact with moving parts.
Reinstalling the Alternator Belt
To properly reinstall the serpentine belt:
- Refer to the belt routing diagram (usually found under the hood or in the owner’s manual).
- Loop the belt around all pulleys except the alternator pulley.
- Use the belt tensioner tool to rotate the tensioner pulley.
- Slip the belt over the alternator pulley while holding the tensioner.
- Slowly release the tensioner, allowing it to put tension on the belt.
Signs of a properly installed alternator belt:
- The belt should be taut with minimal slack.
- All ribs of the belt should be seated properly in the pulley grooves.
- The belt should not be twisted or misaligned on any pulley.
Reconnecting the Battery
To properly reconnect the battery:
- Ensure all tools are clear of the engine compartment.
- If disconnected, reconnect the positive (+) terminal first.
- Connect the negative (-) terminal last.
- Tighten both terminal connections securely.
Consequences of incorrect battery reconnection include:
- Electrical system damage
- Computer system resets
- Potential sparks or short circuits
Testing the New Alternator
To test the new alternator:
- Start the engine and let it idle.
- Use a multimeter to check the voltage at the battery terminals. It should read between 13.5 and 14.5 volts with the engine running.
- Turn on electrical accessories (headlights, AC, radio) and ensure the voltage stays above 13 volts.
- Rev the engine slightly and check for any unusual noises from the alternator area.
Signs of a faulty alternator installation:
- Battery warning light on the dashboard
- Dimming lights when electrical accessories are used
- Unusual noises coming from the alternator area
- Voltage reading below 13 volts or above 15 volts
Common Issues and Troubleshooting
Common issues after replacing the alternator include:
- Battery not charging:
- Check all electrical connections
- Verify the belt is properly tensioned
- Test the voltage regulator
- Unusual noises:
- Ensure the belt is properly aligned
- Check for loose mounting bolts
- Inspect for any obstructions in the pulleys
- Electrical system problems:
- Verify all fuses are intact
- Check for any pinched or damaged wires
- Ensure the battery is in good condition
To troubleshoot these issues:
- Use a multimeter to check voltages at various points
- Visually inspect all connections and components
- Consult the vehicle’s service manual for specific diagnostic procedures
- If problems persist, consider having a professional mechanic inspect the work
