Proper installation of shielded ignition wires begins with gathering essential tools such as wire strippers, crimpers, and a multimeter, which confirm correct electrical performance. Park the vehicle on a flat surface and remove old wires individually to maintain correct firing order. Inspect new wires, opting for copper cores and silicone covers for best results, then label and cut to the correct length. Route new wires along their original paths, securing with clips to prevent damage. Ensure tight, clean connections at spark plugs and coils. Finally, verify functionality by checking resistance, ideally between 3,000 and 12,000 ohms per foot, for optimal performance. Learn more about each step for precise ignition tuning.
Gather Necessary Tools
Start by gathering the tools you need to install shielded ignition wires. This makes your work faster and helps avoid damaging the wires.
You will need a good wire stripper and crimper to cut and connect wires snugly. Different screwdrivers help you reach and secure parts of the ignition system. Use a multimeter to check the electrical connections and make sure everything is working right.
Different wires, like copper core or silicone-insulated, need specific handling. Handle silicone-insulated wires gently to keep the insulation intact.
A heat gun might be useful if you're using shrink tubing, as it helps tighten the seal around connections. A torque wrench is also useful to apply the right force when securing terminal connections so you don't over-tighten them.
Remove Old Ignition Wires
To remove old ignition wires, first park your car on a flat surface. Make sure the engine is off and has cooled down. This helps avoid any burns or electric shocks.
Open the hood and find the ignition wires that need changing. Take off each wire one at a time so you don't mix them up when putting in the new ones.

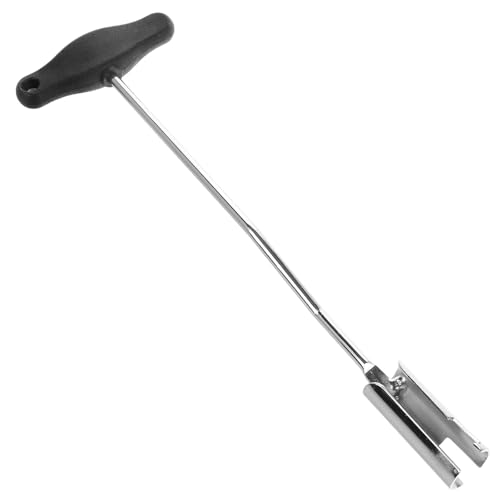

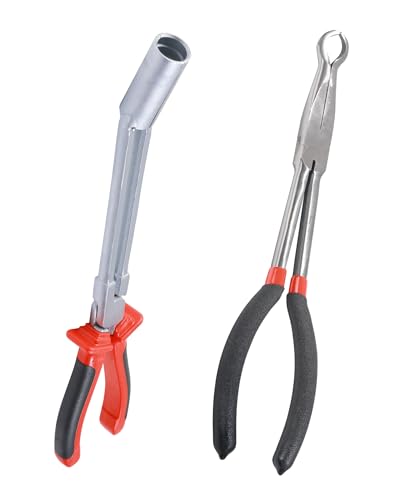

Hold the boot (the end part covering the wire) firmly instead of pulling the wire itself. This way, you won't harm the wire inside. Twist the boot gently to loosen any stuck dirt or heat seal, then pull it straight off from the spark plug or ignition coil.
If you're checking for ignition problems, look for wear on the wires like cracks or burns.
Keep the wires you took off in the order you removed them. Doing this helps keep the right firing sequence for the engine.
If a wire is hard to take off, use a bit of dielectric grease next time to make it easier. Follow these steps to smoothly switch to new ignition wires.
Prepare New Wires
Remove the old ignition wires and prepare the new ones for your car. Pick the right type of wire for your car to make sure it works well and lasts long. You can choose from copper, carbon, or inductive core wires. They each have different abilities to handle resistance and block interference, which is important for your car's ignition.
Before you put the new wires in, check them for any damage. Use good tools to cut the wires to the length your car needs. If they are too long or too short, it can cause problems later.
Here are some tips to help you install the wires:
- Label each wire: Write down which cylinder each wire connects to. This will help you avoid mix-ups.
- Use dielectric grease: Put some on the boots to keep water out and make sure they fit snugly.
- Follow manufacturer guidelines: Stick to the instructions given to make sure the wires work well and keep any warranty.
These steps will help you get the wires ready and make installing them easier.
Install Shielded Wires
Start by guiding the new shielded ignition wires through the engine area. Make sure they follow the original route so they don't touch hot engine parts or sharp edges. This setup helps the ignition system work well.
Shielded wires stop unwanted electrical noise that can mess up the engine. Using specially designed wires helps avoid misfires and makes the engine run better.
When picking wires, look at the core and cover. Copper core wires carry electricity well and have low resistance. Silicone covers handle heat well. These materials in shielded wires work great in hot conditions and fit with modern engines.
Install the wires properly by using clips or ties to keep them steady. This stops shaking that might cause damage or disconnection.
Check that all spark plug and ignition coil connections are tight and clean. Loose connections can make the system unreliable.
Installing shielded wires right protects the ignition system and keeps the vehicle running smoothly.
Test Ignition System
To keep your vehicle running smoothly, check the ignition system after putting in new ignition wires. Make sure the wires are hooked up right and working well to avoid any problems.
Start by looking at the wires to see if they are firmly attached to the spark plugs and distributor. This will help ensure there are no loose connections.
Next, use a multimeter to see if the resistance in the wires is where it should be. This can help spot any issues with the wires. Most wires should have a resistance between 3,000 and 12,000 ohms per foot, but this depends on the wire type.
Steps to follow:
- Look Over the Wires: Check connections and look for any visible issues.
- Check Resistance: Use a multimeter to measure resistance.
- Test the Spark: Make sure each cylinder is getting a spark.
People Also Ask
What Are the Benefits of Using Shielded Ignition Wires Over Standard Wires?
Shielded ignition wires are better than regular wires because they stop unwanted signals from messing up the engine's timing. This makes the engine work better, stops car radio noise, and helps the whole car run smoother.
How Can I Identify if My Vehicle Needs Shielded Ignition Wires?
Check your vehicle manual to see if it needs shielded ignition wires. If your car has trouble starting or the radio makes weird noises when the engine is on, it might need these special wires to stop electrical interference.
Are There Any Safety Precautions to Consider When Handling Ignition Wires?
When working with ignition wires, always disconnect the car battery first to stay safe. Wear insulated gloves to protect your hands. Make sure the wires are not hot and keep your work area clean to prevent any dirt or contamination.
Can Improper Installation Affect Vehicle Performance or Cause Damage?
If ignition wires are put in wrong, the engine might not run well because it could misfire. It's important to use the right wires. If the wires don't match, it can cause problems with the car's electrical system and make it wear out faster.
How Often Should Ignition Wires Be Replaced or Inspected for Wear?
Check your car's ignition wires often and change them every 30,000 to 50,000 miles. This helps your car run well and stops problems from worn-out wires. Good car care means checking parts regularly, so everything works smoothly!
