Starter Motor Location in Car: Finding & Accessing It in Any Vehicle

Finding your car’s starter motor can be challenging due to varying vehicle designs. This comprehensive guide will help you locate and access the starter motor in virtually any vehicle, whether you need to inspect, test, or replace this critical component.

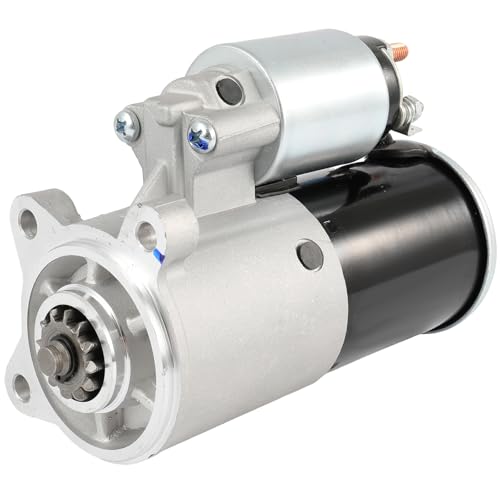

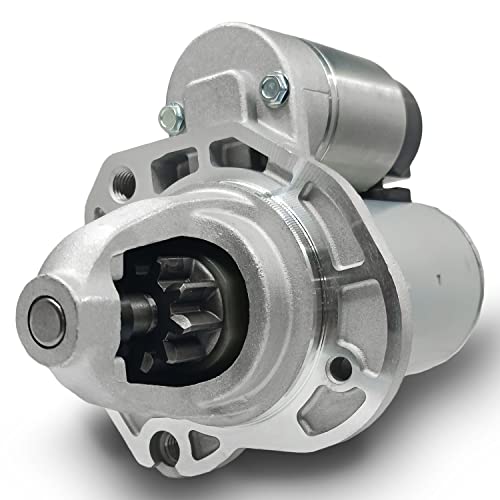

What Is a Starter Motor and What Does It Look Like?

A starter motor is an electric motor that initiates engine rotation when you turn your key or push the start button. Physically, it resembles a cylindrical metal canister (approximately 6-8 inches long) with a smaller cylindrical component (the solenoid) attached to one end. Key identifying features include:

Cylindrical metal housing with cooling vents
Electrical connections including a large power cable from the battery
Solenoid (looks like a small metal can) attached to one end
Mounting flange with bolt holes
Drive gear (pinion) that engages with the engine’s flywheel
Usually has a distinctive shape with one end narrower than the other

The starter’s appearance varies by vehicle make and model, but these general characteristics remain consistent across most conventional vehicles.

General Starter Motor Location Principles Across Vehicle Types

Starter motors are almost always positioned where they can directly engage with the engine’s flywheel or flexplate. This engineering necessity places them at the junction between the engine and transmission, typically on the lower portion of the engine block.

The starter motor location in car follows these principles:

Located at the engine-transmission junction
Positioned to engage with the flywheel/flexplate teeth
Usually mounted low on the engine block
Often partially obscured by other components
Connected to a large battery cable and smaller control wires

This consistent placement logic applies across most vehicle types, though specific mounting positions vary by engine layout and vehicle design.

Finding Your Starter Motor in Front-Wheel Drive Vehicles

In front-wheel drive vehicles, the starter motor is typically located on the transmission side of the engine, often positioned low and toward the firewall. Specific characteristics include:

Usually mounted between the engine and transmission
Often positioned below the engine’s left cylinder bank (driver’s side in left-hand drive vehicles)
May be partially hidden by the intake manifold or other components
Sometimes requires access from underneath the vehicle
In some Honda models, the starter is mounted under the intake manifold
Toyota often places starters on the firewall side of the engine

For many front-wheel drive vehicles, you’ll need to look toward the back of the engine compartment, often requiring a flashlight to see into tight spaces between the engine and firewall.

Starter Motor Location in Rear-Wheel Drive Vehicles

In rear-wheel drive vehicles, the starter motor is typically positioned at the rear of the engine where it meets the transmission. Key location characteristics include:

Usually mounted on the passenger side of the engine (in left-hand drive vehicles)
Often positioned below the exhaust manifold
Generally more accessible from underneath the vehicle
Visible when looking up at the transmission bell housing
In Ford F-150s and similar trucks, located on the passenger side of the engine block’s lower side
In many GM vehicles, positioned on the lower right side of the engine

You May Find it Helpful: Alternator vs Starter Problems: How to Tell the Difference & Fix It Right the First Time

Rear-wheel drive starters are often easier to spot from underneath the vehicle, making visual identification more straightforward if you have access to a lift or jack stands.

Locating Starters in Transverse vs. Longitudinal Engine Layouts

The engine orientation significantly affects starter placement:

Transverse Engine Layout (Most FWD Vehicles)

In transverse layouts, where the engine is mounted sideways, the starter is typically:

Located on the end of the engine closest to the firewall
Often positioned on the lower side of the engine
May be partially obscured by the intake manifold
Sometimes requires removal of air intake components for access
Can be difficult to see without a flashlight and mirror

Longitudinal Engine Layout (Most RWD Vehicles)

In longitudinal layouts, where the engine runs front-to-back, the starter is typically:

Mounted at the rear of the engine where it meets the transmission
Usually on the passenger side (in left-hand drive vehicles)
More accessible from underneath the vehicle
Often visible when looking up at the transmission bell housing
May require removal of heat shields or exhaust components for access

Understanding your engine’s orientation provides the first clue to narrowing down your starter’s location.

SUV and Truck Starter Locations and Accessibility Challenges

SUVs and trucks present unique considerations for starter location and access:

Higher ground clearance often provides better underneath access
In full-size trucks like the Ford F-150, the starter is typically on the passenger side of the engine, near the transmission
In Chevrolet Silverado and similar trucks, the starter is mounted on the passenger side of the engine block
Diesel engines in trucks may have starters positioned differently due to engine design
4WD vehicles may have transfer cases or skid plates that complicate access
Some larger trucks may have dual starter motors for more cranking power

The increased ground clearance of SUVs and trucks often makes underneath access easier, though the larger engine compartments can sometimes make visual identification more challenging.

Luxury and Performance Vehicle Starter Access Considerations

Luxury and performance vehicles often present unique challenges for starter access:

Tighter engine compartments with more components
Specialized engine covers and aesthetic shields
Mid-engine designs place starters in unusual locations
European luxury vehicles often require removal of multiple components for access
Performance vehicles may have heat shields protecting starters from exhaust heat
Some high-end vehicles require partial disassembly of the intake system

These vehicles often prioritize performance and aesthetics over service accessibility, making starter location and replacement more complex than in mainstream vehicles.

Tools Needed to Access Your Starter Motor

The basic tools required to access a starter motor include:

Socket set and ratchet (metric or standard depending on vehicle)
Wrenches (open-end and box-end)
Screwdrivers (Phillips and flathead)
Flashlight or work light
Jack and jack stands (for underneath access)
Pliers
Safety glasses
Gloves
Vehicle service manual or online repair guide

For some vehicles, you may also need:

Torque wrench (for proper reinstallation)
Extension bars for socket wrenches
Universal joint adapters for reaching difficult angles
Trim removal tools for interior access panels

Having these tools ready before beginning will make the process much smoother.

Visual Identification Guide: How to Spot Your Starter Among Engine Components

To identify your starter among other engine components, look for:

A cylindrical metal component with a smaller cylindrical solenoid attached
Large gauge wire (battery cable) connected to one terminal
Smaller control wire connected to the solenoid
Mounting location at the engine-transmission junction
Often has visible cooling vents in the housing
Usually has 2-3 mounting bolts securing it to the engine block
May have heat shields surrounding it in some vehicles

The starter is distinct from the alternator, which is typically mounted higher on the engine with a pulley connected to the serpentine belt. Understanding the difference between starter motor vs alternator function helps with identification – the starter initiates engine rotation while the alternator generates electricity once the engine is running.

Step-by-Step: Accessing Your Starter Motor Safely

To safely access your starter motor:

Park on level ground and engage the parking brake
Allow the engine to cool completely if recently running
Disconnect the negative battery terminal to prevent electrical shorts
Consult your vehicle’s service manual for specific access instructions
For underneath access, properly lift and secure the vehicle on jack stands
Remove any covers, shields, or components blocking access
Identify the starter by following the main battery cable
Inspect the starter without disconnecting any wires initially
Take photos before removal if planning replacement

Safety is paramount – never work under a vehicle supported only by a jack, and always disconnect the battery before working on electrical components.

Common Starter Access Obstacles and How to Overcome Them

Several components commonly obstruct starter access:

Intake manifolds: May require partial disassembly or working around
Exhaust components: Heat shields and exhaust pipes often block direct access
Skid plates: Common in SUVs and trucks, usually removable with basic tools
Engine covers: Decorative covers in modern vehicles that snap or bolt off
Wiring harnesses: May need to be carefully moved aside
Air conditioning lines: Cannot be disconnected without special equipment
Power steering components: May limit access in some vehicles

You May Find it Helpful: Why Do Some Enthusiasts Prefer to Keep Their Bentleys in "Survivor" Condition?

Patience and methodical component removal following your service manual’s guidance is key to overcoming these obstacles.

Vehicle-Specific Starter Locations for Popular Makes and Models

Toyota Camry (2012-2017)

Located on the driver’s side of the engine
Positioned beside the battery
Accessible primarily from above after removing some components

Honda Civic (2006-2011)

Located on the back of the engine
Accessed from underneath the vehicle
May require removal of splash shields

Ford F-150 (2015-2020 with 3.5L V6)

Located on the passenger side of the engine
Mounted to the transmission bell housing
Accessible from underneath the vehicle

Chevrolet Silverado (2017)

Located on the passenger side of the engine block
Positioned low near the transmission
Typically requires underneath access

These popular vehicles represent common starter placement patterns for their respective manufacturers, though specific model years and engine options may vary.

Unique Starter Locations in Hybrid and Electric Vehicles

Hybrid and electric vehicles often feature integrated starter-alternator systems that differ from conventional starters:

Micro hybrids: Use enhanced starter motors that also function as alternators
Mild hybrids: Often use integrated starter-generators mounted directly to the engine
Full hybrids: May use the electric drive motor to start the combustion engine
Many hybrids use combined starter-alternator units (ISA systems)
Some hybrids place the starter function within the transmission housing
Electric vehicles don’t have traditional starters since they don’t have combustion engines

These advanced systems often integrate starting functions with other powertrain components, making traditional starter location principles less applicable.

When You Need to Access Your Starter From Underneath

Underneath access is necessary when:

The starter is mounted low on the engine block
It’s positioned between the engine and firewall
Exhaust components block top-side access
The vehicle has a low ground clearance design
The starter is mounted on the bottom of the engine

For safe underneath access:

Use a proper jack to lift the vehicle
Always secure with jack stands before going underneath
Use a creeper or mat for comfort and mobility
Ensure adequate lighting with a headlamp or work light
Consider removing splash shields or covers for better visibility

Never rely solely on a jack to support a vehicle while working underneath it.

When You Need to Access Your Starter From Above

Top-side access is possible when:

The starter is mounted high on the engine
It’s positioned on the front of the engine
The vehicle has a spacious engine bay
Components blocking access can be easily removed
The starter is mounted near the top of the transmission

For effective top-side access:

Remove the engine cover if present
Move aside wiring harnesses carefully
Remove the air intake assembly if necessary
Use a flashlight to locate the starter in tight spaces
Consider using a mirror tool for visual confirmation in hard-to-see areas

Top-side access is generally safer but may require more component removal in modern vehicles with crowded engine compartments.

Starter Solenoid Location vs Motor Location

Understanding the relationship between the starter motor and solenoid helps with identification:

Integrated design: Most modern vehicles have the solenoid mounted directly on the starter motor
Remote solenoid: Some older vehicles (particularly Ford) have the solenoid mounted separately on the fender well or firewall
The solenoid is typically a small cylindrical component attached to the main starter body
It has both large power terminals and smaller control wire connections
In integrated designs, following the main battery cable will lead to both components
In remote designs, the solenoid must be located separately, usually following the control wires from the ignition

Knowing whether your vehicle has an integrated or remote solenoid design helps narrow down the search area.

How to Access Starters in Tight Engine Compartments

Modern vehicles with compact engine compartments require special techniques:

Use flexible socket extensions and universal joints
Consider removing wheels for side access in some vehicles
Remove non-essential components to create working space
Use mirrors and inspection cameras for visual confirmation
Work methodically from the most accessible side
Consider partial removal of the intake manifold if necessary
Use specialized thin-wall sockets when clearance is minimal

Patience is essential when working in tight spaces – rushing often leads to damaged components or personal injury.

Using Your Vehicle’s Manual to Locate the Starter

Your vehicle’s service manual provides the most accurate starter location information:

Check the component location section
Look for electrical system diagrams
Review the starter replacement procedure
Examine exploded view diagrams of the engine
Look for specific access instructions and tool requirements

If you don’t have a physical manual, digital versions are often available through manufacturer websites, subscription services, or auto parts retailers.

Online Resources for Vehicle-Specific Starter Location

When your manual isn’t available, these online resources can help:

Manufacturer technical websites
Model-specific forums and owner groups
YouTube repair videos for your specific vehicle
Auto repair databases (some libraries offer free access)
Repair websites with vehicle-specific guides
Auto parts retailer websites often include location information
Mobile mechanic apps with component location features

You May Find it Helpful: Starter Motor vs Alternator Function: Understanding the Critical Differences

Always verify that the information matches your specific vehicle year, make, model, and engine configuration.

Warning Signs That Indicate Starter Access Is Needed

Several symptoms suggest you need to access your starter for inspection or replacement:

Clicking noise when turning the key
Grinding sounds during starting attempts
Slow cranking of the engine
Starter motor clicking noise without engine cranking
Starter motor not engaging with the flywheel
Intermittent starting issues
Smoke or burning smell from the starter area
Engine cranks but won’t start (when other systems check out)

Recognizing these symptoms early can prevent being stranded and may reduce repair costs by addressing issues before complete failure occurs.
